Product NI22U-Q40-AP6X2-H1141
Inductive Sensor
For Parts Position Control in Die Press Tools

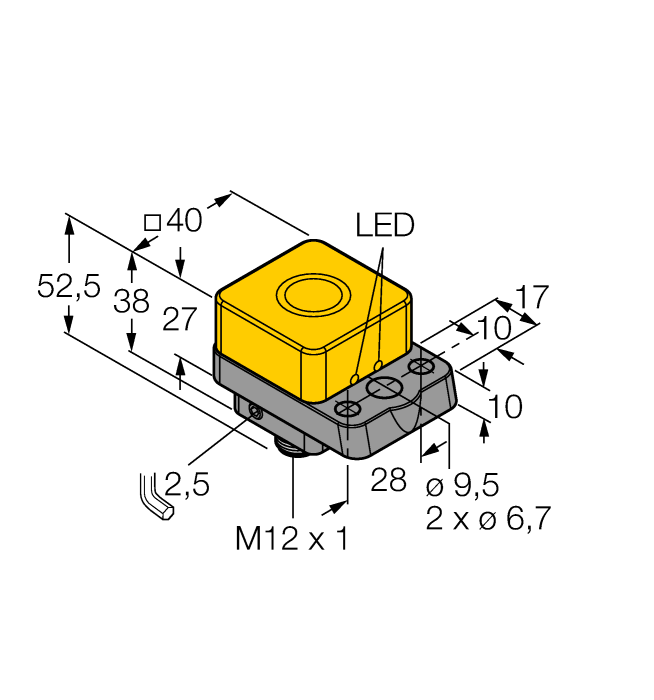

Order number: 4690229- Rectangular, height 38 mm
- Active face on top
- Plastic, PBT‐GF30‐V0
- Factor 1 for all metals
- Resistant to magnetic fields
- Extended temperature range
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
