Product FCS-G1/2A4-NAEX-H1141/AL140
Flow Monitoring
Immersion Sensor without Integrated Processor
Order number: 6870385- Ex sensor for gaseous media
- Calorimetric functionality
- Adjustment via Ex signal processor
- Status indicated via LED chain on signal processor

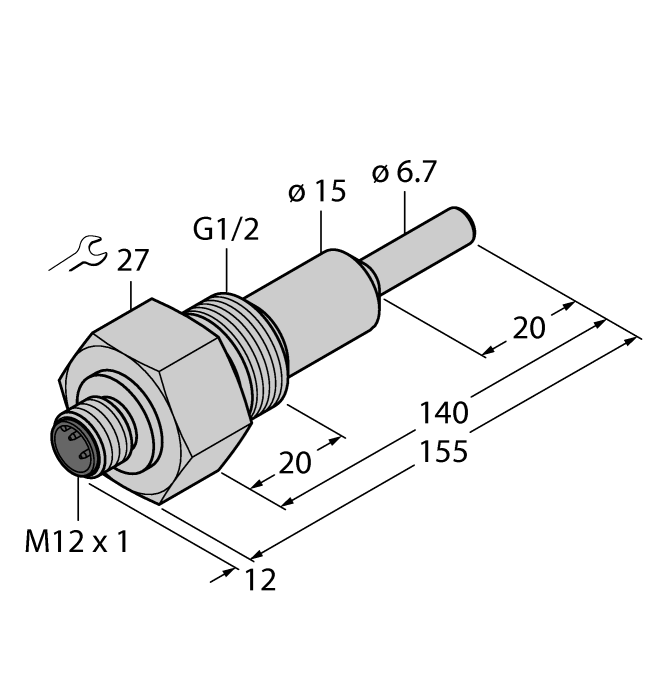

- Sensor length 140 mm
- Intrinsically safe Ex ib IIC T4…T3, for use in Zone 1
- Connector device
- 4-wire connection to an Ex signal processor
- ATEX category II 2 G, Ex zone 1
- ATEX category II 2 D, Ex zone 21
General data
| EAN | 4047101208641 |
| eCl@ss-Code (V5.1.4): | 27273190 -/- Flow meter (not classified) |
| Customs tariff number | 90268020000 |
| Country of origin | DE |
| Weight | 310 g |
Technical Data
| Process connection | G 1/2'' |
| Mounting conditions | Immersion sensor |
| Housing material | Stainless steel, 1.4571 (AISI 316Ti) |
| Protection class | IP67 |
