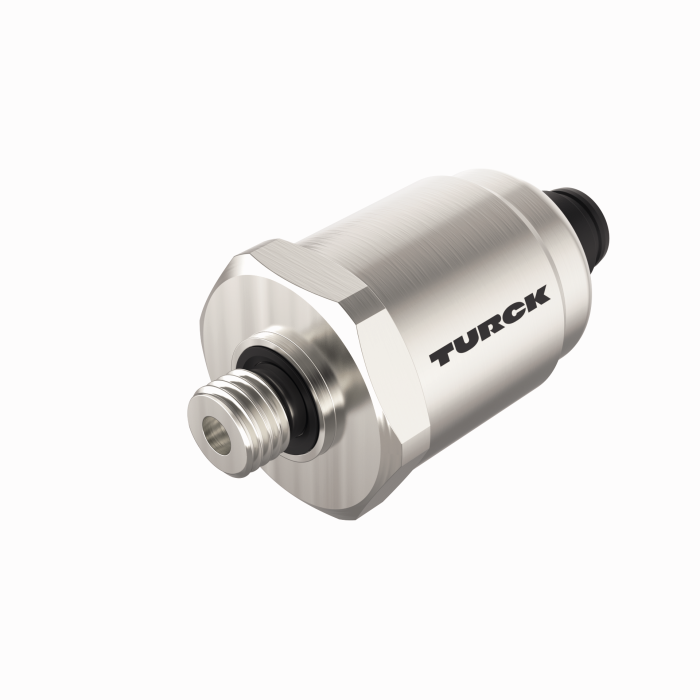

Product PT0.1VR-1513-U1-H1144/D840
Pressure Transmitter
With Voltage Output (3-Wire)
Order number: 100002999- Ceramic measuring cell
- Extremely high measuring accuracy
- Compact and robust design
- Excellent temperature behavior
- Pressure range -100…0 mbar rel.
- 12…33 VDC
- Analog output 0…10 V

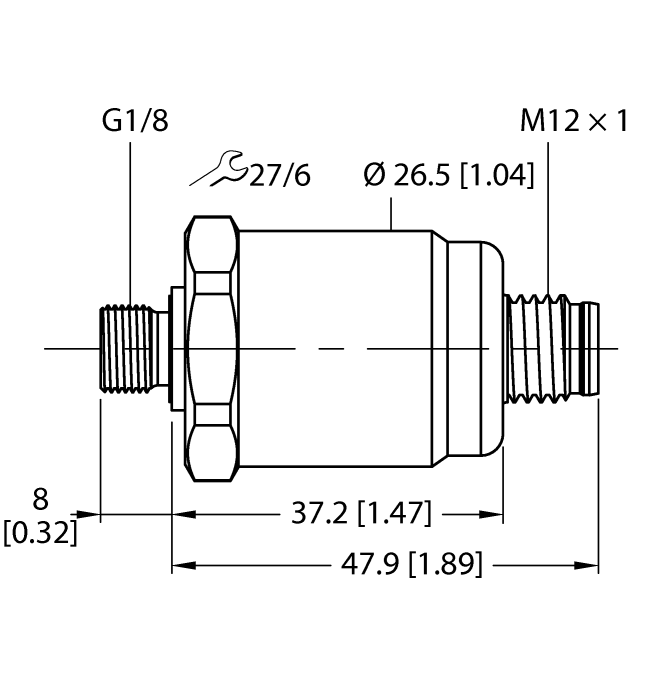

- Process connection G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
- Connector device, M12 × 1
