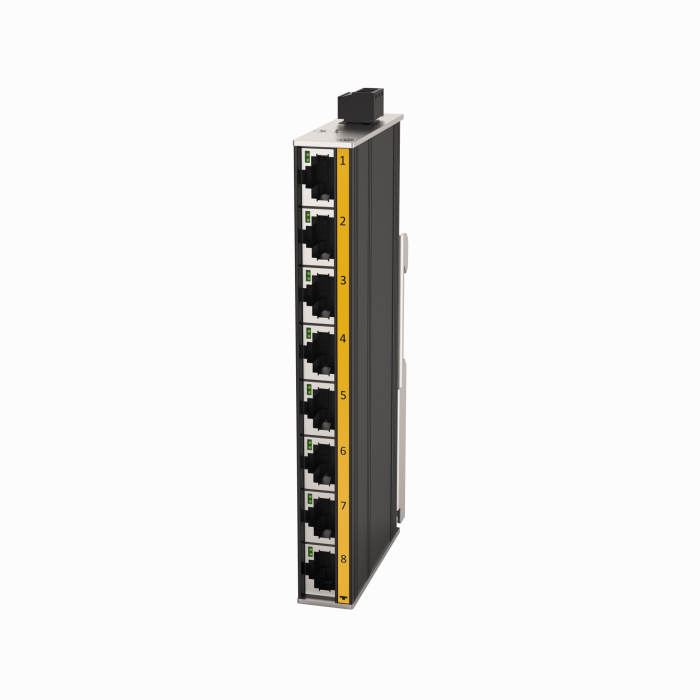

Product TNIC-UX-8FE
Unmanaged Ethernet Switch
8 × 100-Mbit Ports
Order number: 100049176- Suitable for industrial Ethernet fieldbus networks (PROFINET, EtherNet/IP, Modbus TCP, CC-Link IE FB, etc.)
- PROFINET compatible: LLDP blocking, packet prioritization according to IEEE 802.1Q VLAN priority tagging across several queues
- 8 × RJ45, 100-Mbps Ethernet
- Aluminum housing
- Protection class IP30
- 3-pin, pluggable screw connection
- Power supply, Ethernet, housing galvanically isolated
General data
| EAN | 4047101656251 |
| Customs tariff number | 85176200000 |
| Country of origin | DE |
| Weight | 233 g |
Technical Data
| Ambient temperature | -40…+70 °C |
| Protection class | IP30 |
Functional accessories
|
REI-E-113T12S-2B5000-H1181 | 100011590 |
|
PKG3S-2/TEG | 6629495 |
