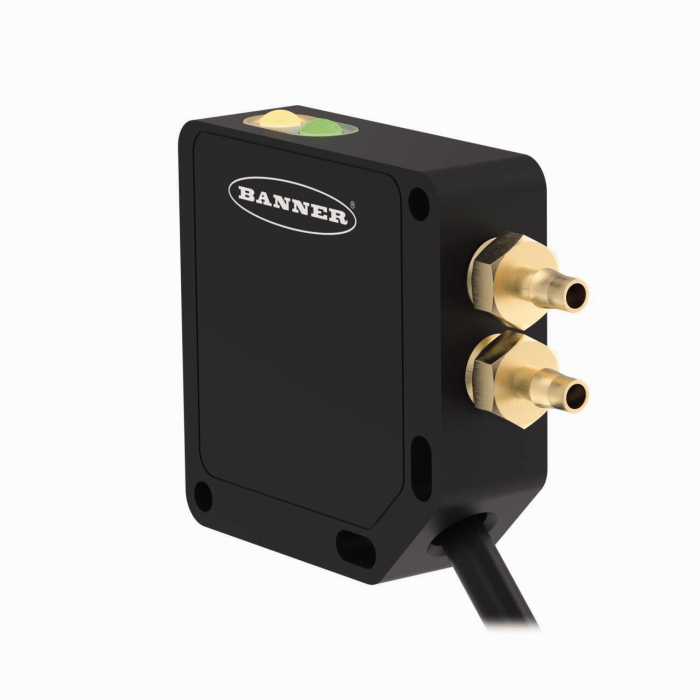

Product QM42-DPS20-2Q
Differential Pressure Sensor
With Serial Interface
RS485/Modbus RTU
Order number: 3812239- Robust metal housing
- Ambient temperature: -40…+85 °C
- Protection class IP67
- Relative humidity: 0…100 %
- Resolution: 0.1 %
- Temperature measuring range: -40…+85 °C
- Resolution: 0.1 °C
- Operating voltage: 10…24 VDC or 3.6…5.5 VDC
- RS485 interface, supports Modbus RTU
General data
| EAN | 662488103132 |
| Customs tariff number | 90262020000 |
| Country of origin | US |
| Weight | 500.535 g |
Technical Data
| Design | Cylinder, threaded |
| Operating voltage | 12…24 VDC |
| Communication protocol | RS485, Modbus RTU |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, Grey |
| Ambient temperature | -40…+85 °C |
| Protection class | IP67 |
