Product VTBP6
Photoelectric Sensor
Touch Switch
With Light
Order number: 3067504Alternative order number : 67504
- Cable, 2 m
- Highly visible request lamp
- Color request light: Green
- Operating voltage 12…30 VDC
- PNP switching output
- Activating input of job light, 10…30 VDC
- Pre-assembled protective cover
General data
| EAN | 662488675042 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 283 g |
Technical Data
| Function | Touch Button |
| Design | Rectangular |

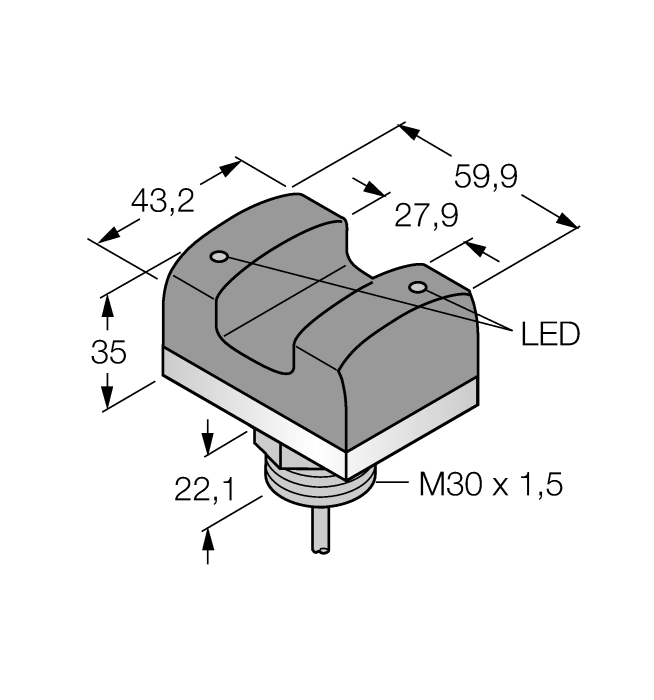

| Construction size | 59.9 x 43.2 x 48 mm, VTB |
| Light type | IR |
| Operating voltage | 12…30 VDC |
| Output function | NO contact, PNP |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Plastic, Thermoplastic polysulphone, Black |
| Ambient temperature | -20…+50 °C |
| Protection class | IP66 |
Mounting accessories
|
INS.P.IO_SYSTEM-EXCOM_PSM24_N_1.32 | 100032386 |
|
PS016V-511-2UPN8X-H1141 | 6832935 |
|
FS46PS-2/M16 | U2-29262 |
