Product Cable-E-BLIDENT-100M
RFID Cable Economy Version

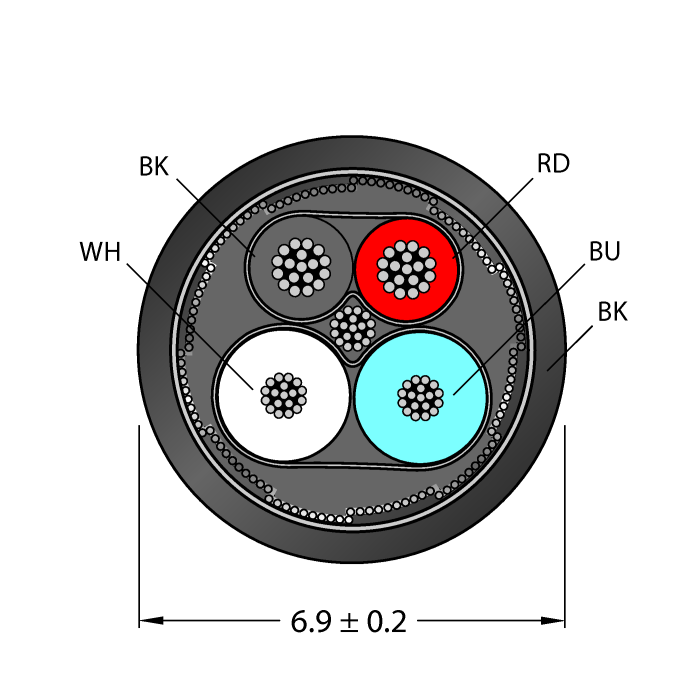

Order number: 7030351- 4-pin, AWG 19/24 (data line), AWG 19/22 (supply line)
- Sheath material: PUR jacket, black
- Halogen and LABS free
- Shield: Aluminium foil, tinned copper braid
- Sheath diameter: 6.7 mm
- Qualified for drag chain use, oil-resistant, highly flexible
- Cable UL Style 20549
- Cable length: 100 m
General data
| EAN | 4047106167530 |
| eCl@ss-Code (V5.1.4): | 27060307 -/- Bus cable |
| Customs tariff number | 85444995900 |
| Country of origin | PL |
| Weight | 6410 g |
Technical Data
| Cable length | 100.0 m |
| Ambient temperature | -25…+80 °C |
