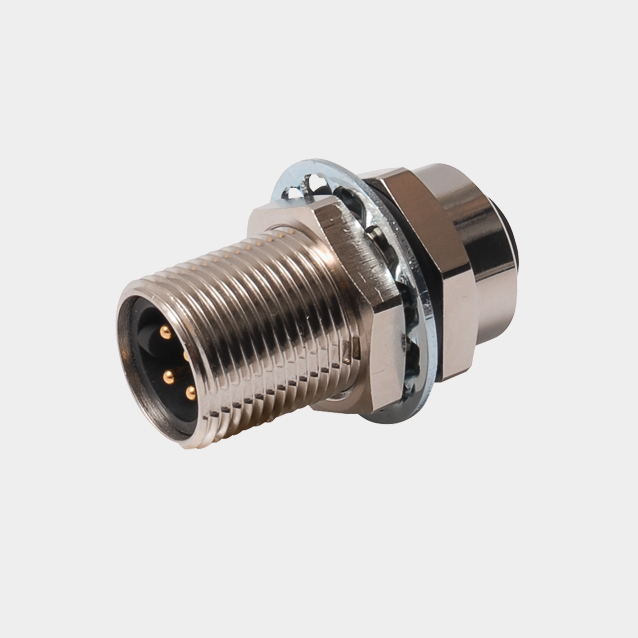

Product RSF RKF 57/22
DeviceNet™ Receptacle
Wall Feedthrough
Rear-Mounted
Order number: U2309-6- Male 7/8" minifast receptacle
- Female 7/8" minifast receptacle
- Design: 7/8" adapter
- 5-pin feedthrough male/female
- For use in CAN (DeviceNet, CANopen) applications
- Ampacity: 9 A
- Rated voltage: 600 V
- Temperature range: -40 °C…+105 °C
- Protection class: NEMA 1, 3, 4 and IEC IP67
- Temperature: -40…+80 °C
- IEC IP67; NEMA 1, 3, 4
- Approval: UL, CSA
- 7/8″, male receptacle, 5-pin
- Screw-in thread: 7/8
- 7/8″, female receptacle, 5-pin
