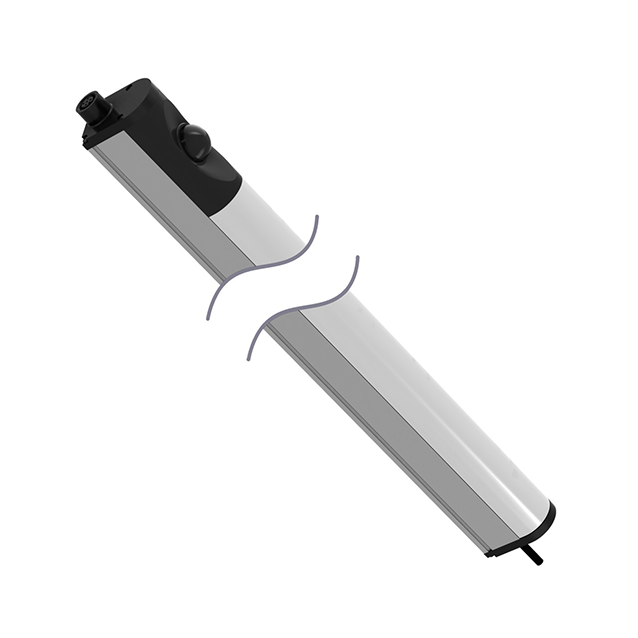

Product WLB32C285M
LED Linear Light
In the Metal Housing
Order number: 3097317Alternative order number : 97317
- Cascadable via M12 × 1 female connector, 4-pin
- ON/OFF switch
- Operating voltage: 12…30 VDC
- Light beam: 285 mm
- Housing length: 313 mm
- Color: Cold white
- With motion switch
- Cable, 2m
General data
| EAN | 662488973179 |
| eCl@ss-Code (V5.1.4): | 27119002 -/- Work light |
| Customs tariff number | 94054231000 |
| Country of origin | MX |
| Weight | 514 g |
Technical Data
| Function | Linear light |
| Light type | White |
| Number of colors/segments | 1 |
| Dimmable | Two-stage |
| Cascadable | Yes |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Metal, AL |
| Window material | Polycarbonate, diffuse |
| Ambient temperature | -40…+70 °C |
| Protection class | IP50 |
Connectivity accessories
|
K50APT2YRCQP | 3800873 |
|
Q50AP W/30 | 3067617 |
