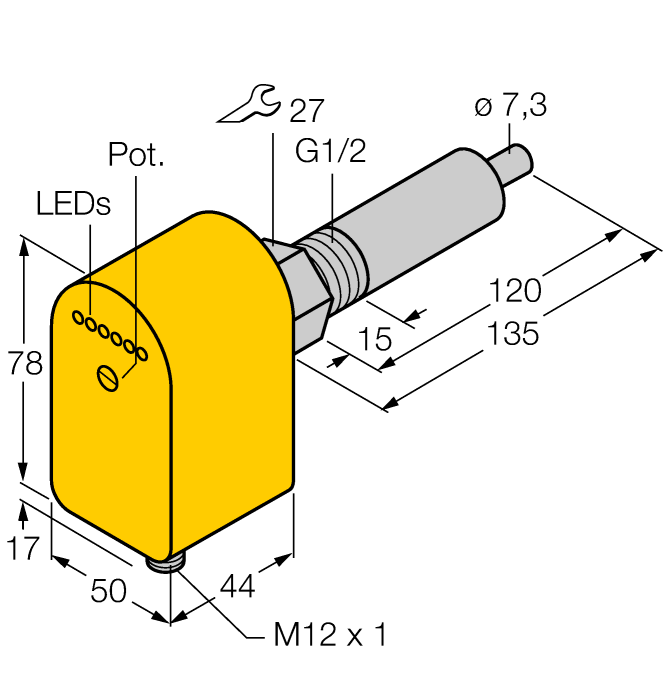

Product FCS-G1/2A4P-LIX-H1141/L120
Flow Monitoring
Immersion Sensor with Integrated Processor
Order number: 6870059- Sensor only for water
- Calorimetric principle
- Adjustments via potentiometer
- Status indicated via LED band
- With linearized analog output
- Sensor length 120 mm
- DC 3-wire, 19.2…28.8 VDC
- 4…20 mA analog output
- Connector device, M12 × 1
Connectivity accessories
|
K50APT2YRCQP | 3800873 |
|
Q50AP W/30 | 3067617 |
