Product RU40U-M30M-2UP8X2-H1151
Ultrasonic Sensor
Diffuse Mode Sensor
Order number: 1610032- Smooth sonic transducer face

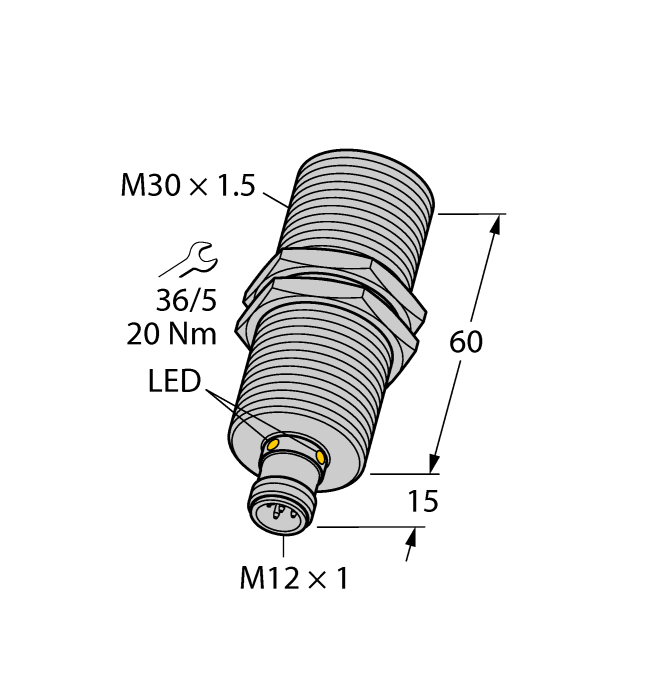

- Cylindrical housing M30, potted
- Connection via M12 × 1 male connector
- Measuring range adjustable via Easy-Teach
- Temperature compensation
- Blind zone: 2.5 cm
- Range: 40 cm
- Resolution: 0.5 mm
- Aperture angle of sonic cone: ±15 °
- 2 x switching outputs, PNP
- NO/NC programmable
General data
| EAN | 4047101287356 |
| eCl@ss-Code (V5.1.4): | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | DE |
| Weight | 153 g |
Technical Data
| Function | Proximity switch |
| Design | Threaded barrel |
| Range | 25…400 mm |
| Operating voltage | 15…30 VDC |
| Output function | NO/NC, PNP |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, CuZn, Nickel Plated |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
