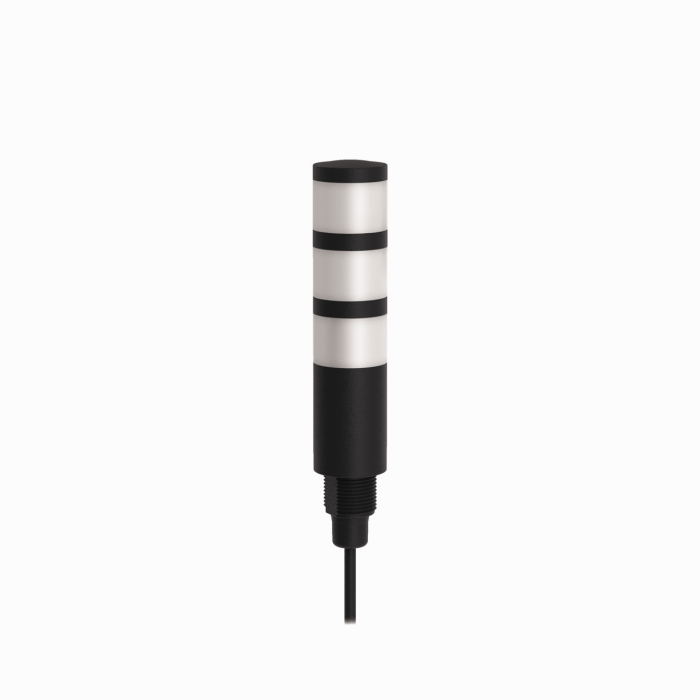

Product TL30BGYRXXNXC1
LED Signal Light
Tower Light
Order number: 3805375Alternative order number : 805375
- Compact plastic housing, black
- Protection class IP65

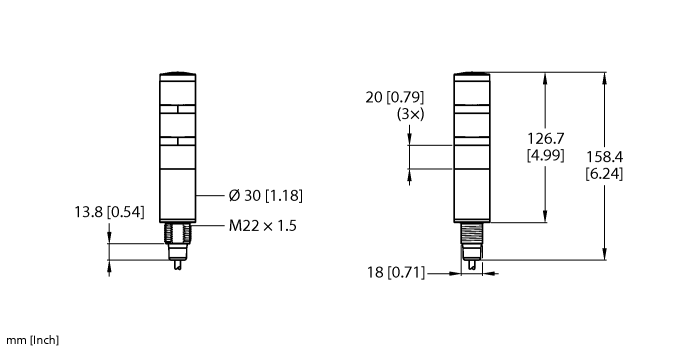

- Mechanical screw-in thread, M22 × 1.5
- Cable, PVC, 1.2 m
- Colors: Green (COL 1), Yellow (COL 2), Red (COL 3)
- Operating voltage: 12…30 VDC
- PNP or NPN input circuit, 5-pin, depending on wiring
General data
| EAN | 662488040468 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85318070000 |
| Country of origin | US |
| Weight | 143 g |
Technical Data
| Function | Tower light |
| Design | Smooth barrel |
| Light type | Green, Yellow, Red |
| Cascadable | No |
| Operating voltage | 12…30 VDC |
| Electrical connection | Cable |
| Cable length | 1.20 m |
| Housing material | Plastic, PC, Black |
| Ambient temperature | -40…+50 °C |
| Protection class | IP65 |
Mounting accessories
|
BI5-S18-VP4X/S97
Cylindrical, threaded barrel, 18 mm, plastic |
1513420 |
|
SLLR40-560P8 | 3089095 |
|
NI100U-K90SR-VP4X2
Rectangular, plastic |
1625834 |
|
BI1.5-EG08WD-AP6X-H1341
Cylindrical, threaded barrel, 8 mm, stainless steel |
4602210 |
Connectivity accessories
|
SESP4SL | 6934784 |
|
EA5R750XKQ | 3015157 |
|
LEDUV395A70SSD5-PQ | 3025316 |
|
GS60IL4Q | 3815793 |
