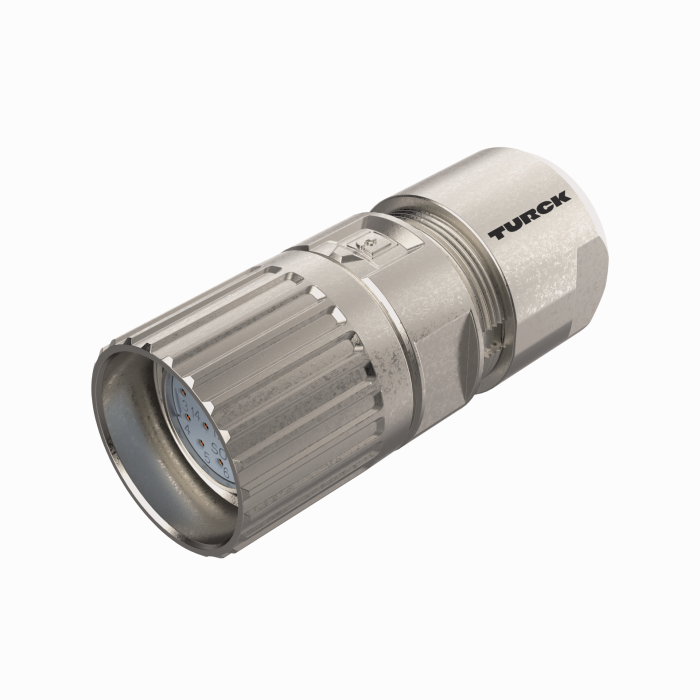

Product FW-CRKSM1717-P-C-0315
Field-Wireable Connector

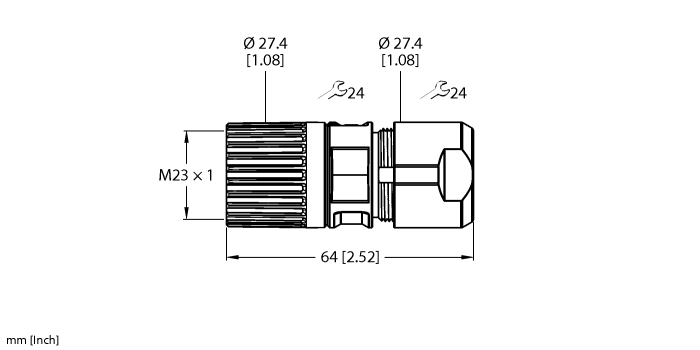

Female M23 × 1, Straight
Order number: 100020364- Metal housing
- Shieldable
- Protection class: IP66, IP68
- Crimp terminal (17 × crimp contacts for terminal cross section 0.5…1.0 mm² included in delivery)
- 17-pin
- Cable feedthrough: 3.0…15.0 mm
- Terminal capacity: 0.08…1.0 mm²
General data
| EAN | 4047101526783 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 112 g |
Mounting accessories
|
QMT42VP6FF1500 | 3057545 |
Connectivity accessories
|
BRO.P.IDENTIFIC_BCR-BL_IDENT_SYSTEM.DE | D500014 |
|
WKH4.5-2-RSH4.5/TFG | 6933885 |
Functional accessories
|
RKS46PSB-0.3-RSS46PSB/TXL | 100023991 |
|
WLC60XW340AR | 3086870 |
|
PS510-10A-04-LI2UPN8-H1141 | 100003733 |
|
WLS28-2XW570DSPWMQ | 3094806 |
|
WSH4-5/TFE | 6935492 |
