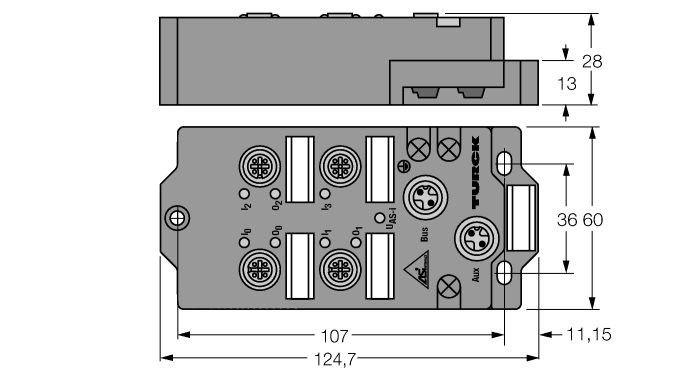

Product FAS4-CSG43-A
compact fieldbus station for AS-interface
4 Inputs, 3 Outputs
Order number: 6821323- Bus connected via AS-interface flat cable or male M12 x 1
- Field devices connected via male M12 x 1
- AS-i specification V2.1
- Short-circuit diagnostics
- Cast housing
- Protection class IP67
- Address range 1…31 A/B
- 4 inputs PNP
- 3 outputs PNP
- 24 VDC
- Additional power supply of the outputs
General data
| EAN | 4047101045918 |
| eCl@ss-Code (V5.1.4): | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 85176200000 |
| Country of origin | US |
| Weight | 368 g |
Technical Data
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
Mounting accessories
|
QMT42VP6FF1500 | 3057545 |
Connectivity accessories
|
BRO.P.IDENTIFIC_BCR-BL_IDENT_SYSTEM.DE | D500014 |
|

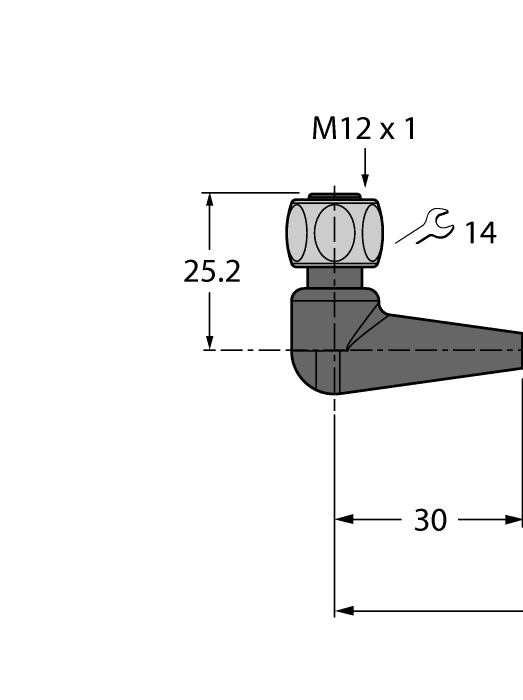

WKH4.5-2-RSH4.5/TFG | 6933885 |
