Product RSEV-48TR-EX
Bus Terminating Resistor

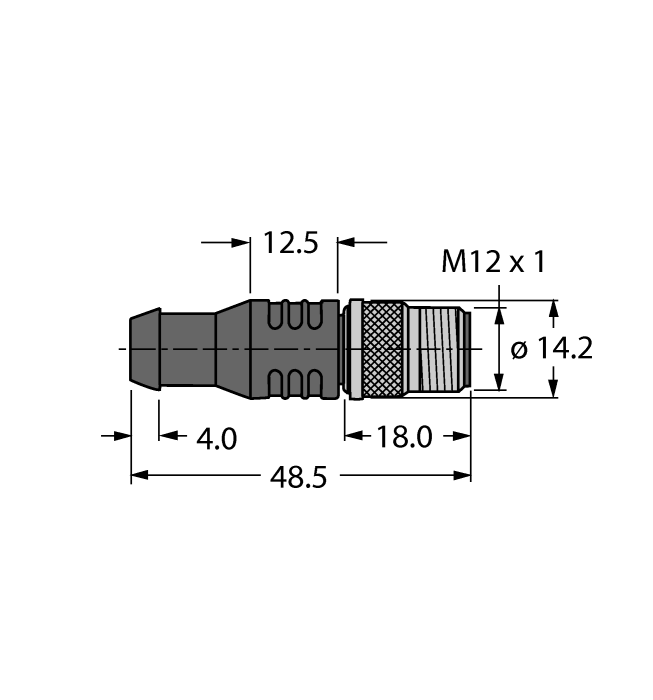

Order number: 6602560- Type: M12 male connector
- Stainless steel coupling nut, straight, 4-pin
- For use in PROFIBUS-PA applications
- Temperature range: -40 °C…+70 °C
- Protection class: NEMA 1, 3, 4, 6P and IEC IP67
- FISCO compliant according to IEC TS 60079-27
General data
| EAN | 4047101107845 |
| eCl@ss-Code (V5.1.4): | 27250201 -/- Network components (fieldbus) |
| Customs tariff number | 85444290900 |
| Country of origin | DE |
| Weight | 21 g |
Technical Data
| Ambient temperature | -40…+70 °C |
| Approvals | ATEX |
