Product K50BCLS1XBXPQP
LED Signal Light
Beacon
Order number: 3086510Alternative order number : 86510
- Flashing LED
- Top and side view
- Two flashing speeds

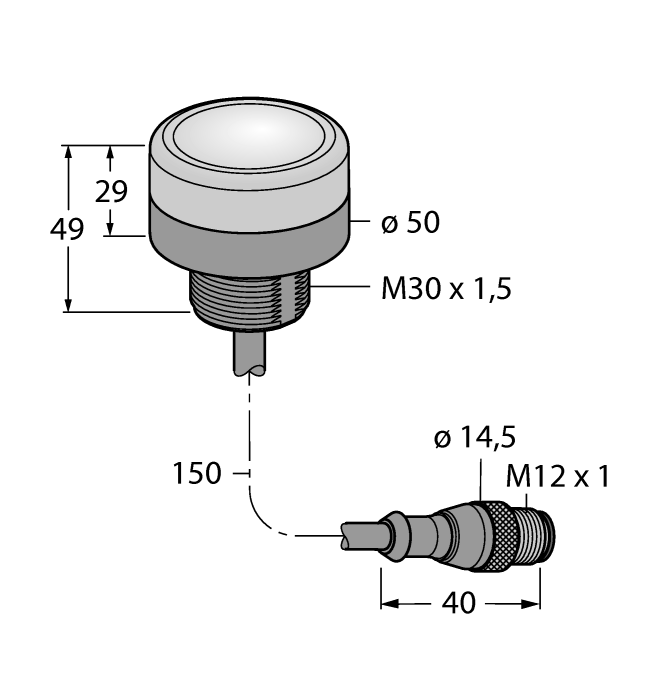

- Screw-in thread M30x1.5
- Protection class IP67
- Colors: Blue flashing (COL 2)
- Cable with male end M12 x 1
- Operating voltage 12…30 VDC
General data
| EAN | 662488865108 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85318070000 |
| Country of origin | US |
| Weight | 141 g |
Technical Data
| Design | Puck |
| Operating voltage | 12…30 VDC |
| Electrical connection | Cable with connector, M12 × 1 |
| Cable length | 0.150 m |
| Housing material | Plastic, PC, Black |
| Ambient temperature | -40…+50 °C |
| Protection class | IP67/IP69 |
| Special features | Wash down |
Mounting accessories
|
TN840/920-Q175L200-H1147 | 7030466 |
|
VAS22-S80E-0.3-RSC5.31T/TXL | 6606506 |
|
PKGC4.5S-10-RSC4.5T/TXL1405 | 6635762 |
Functional accessories
|
PT600R-2008-I2-H1141/X | 6836672 |
