Product FSV 48-0.3M/M20/C1117
PROFIBUS-PA Flanschanschluss
Flange

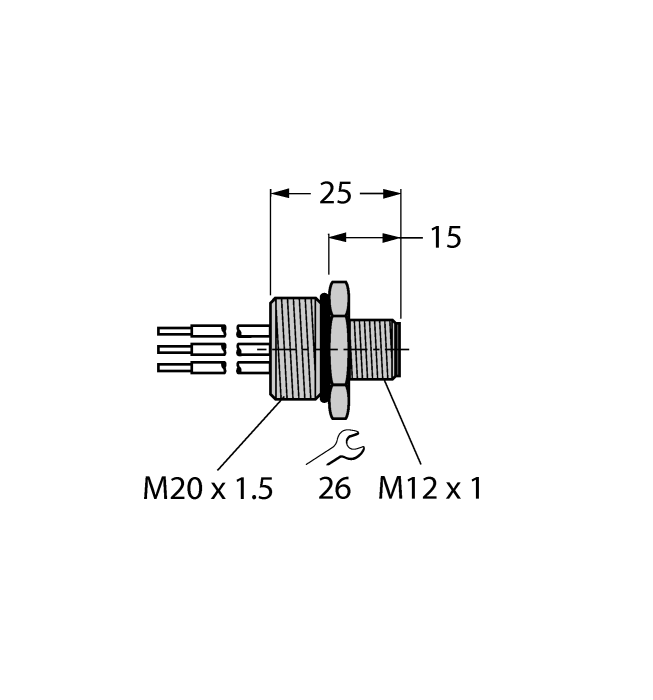

Order number: U2-30296- Type: M12 male
- M20 × 1.5 screw-in thread
- Stainless steel flange housing
- 4-pin, wire length 0.3 m
- For use in PROFIBUS-PA applications
General data
| EAN | 4047101042696 |
| eCl@ss-Code (V5.1.4): | 27250314 -/- Connection technology |
| Customs tariff number | 85444290900 |
| Country of origin | CN |
| Weight | 47 g |
Technical Data
| Ambient temperature | -40…+105 °C |
Mounting accessories
|
RSC-RKC5701-20M | 6604840 |
|
INU.P.IP67_BLOCK-TBIL_M1_16DIP.DE | 100024843 |
Connectivity accessories
|
TI-BL20-E-EN-S-6
BL ident interface set |
7030632 |
