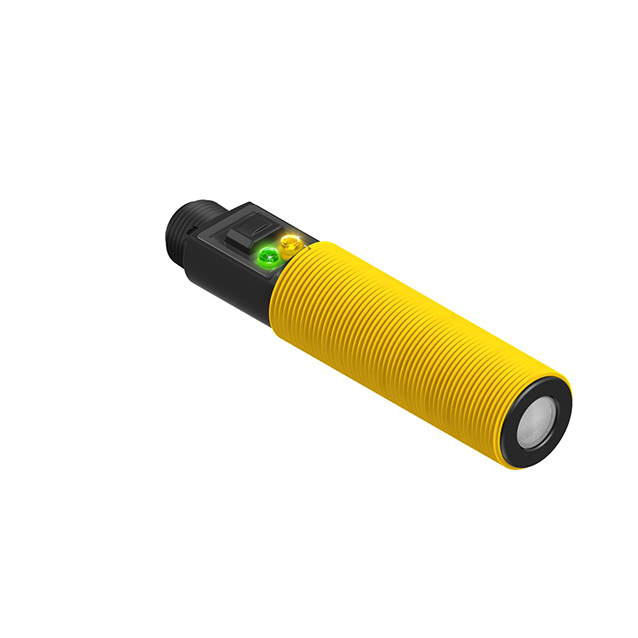

Product S18UUAQ
Ultrasonic Sensor
diffuse mode sensor
With Analog Output
Order number: 3002700Alternative order number : 02700
- Compact design
- Connection via male M12 x 1
- Temperature compensation
- Very small blind zone
- Measuring range adjustable via teach-in
- Blind zone: 3 cm
- Range: 30 cm
General data
| EAN | 662488027001 |
| eCl@ss-Code (V5.1.4): | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 71 g |
Technical Data
| Design | Tube |

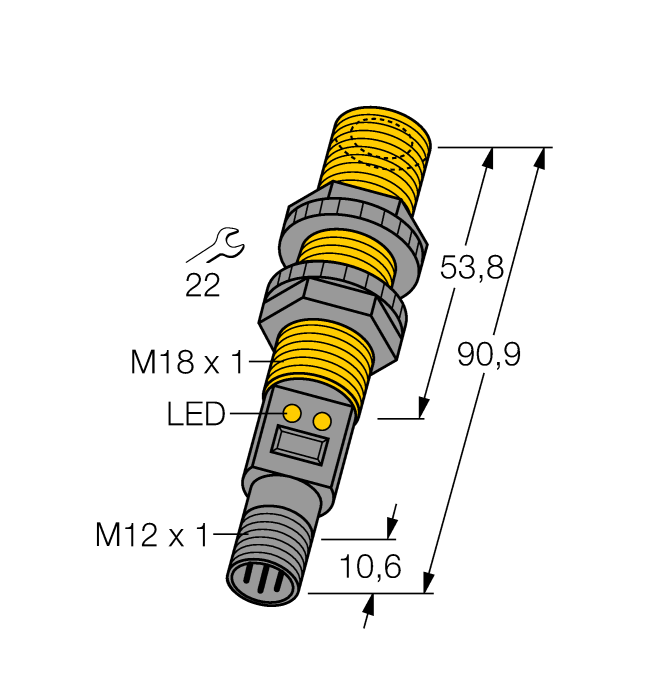

| Construction size | M18 x 1 |
| Operating voltage | 10…30 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, ABS/Polycarbonate |
| Ambient temperature | -20…+60 °C |
| Protection class | IP67 |
| Special features | Clear object detection |
Connectivity accessories
|
PT16R-1001-U1-H1143 | 6836330 |
