Product DX80N2Q45RD2
Radio Transmission System
Star Topology
Node for Connecting External Sensors
Order number: 3080329Alternative order number : 80329
- Protection class IP67
- Mechanical screw-in thread M30 × 1.5
- Connection via M12 × 1 female connector, 4-pin
- Base unit for external sensor
- For connecting up to two NAMUR sensors
- Female, M12 x 1
- Sensor supplied by base unit
- Sensor voltage adjustable via DIP switch
- Operating voltage: 3.6…5.5 VDC
- Current consumption: ≤ 100 µA
- Supply via 2x 3.6 V Li-ion AA batteries, supplied with the device
- FCC-ID UE300DX80-2400 This device complies with FCC para. 15, sub para. C, 15.247 ETSI/EN: In compliance with EN 300 328: V1.7.1 (2006‐05)IC: 7044A‐DX8024
- Radiation protection 10 V/m for 80-2700 MHz acc. to EN 61000-6-2
General data
| EAN | 662488803292 |
| eCl@ss-Code (V5.1.4): | 27250312 -/- Communication interface, active |
| Customs tariff number | 85176200000 |
| Country of origin | US |
| Weight | 305 g |
Technical Data
| Design | Rectangular |

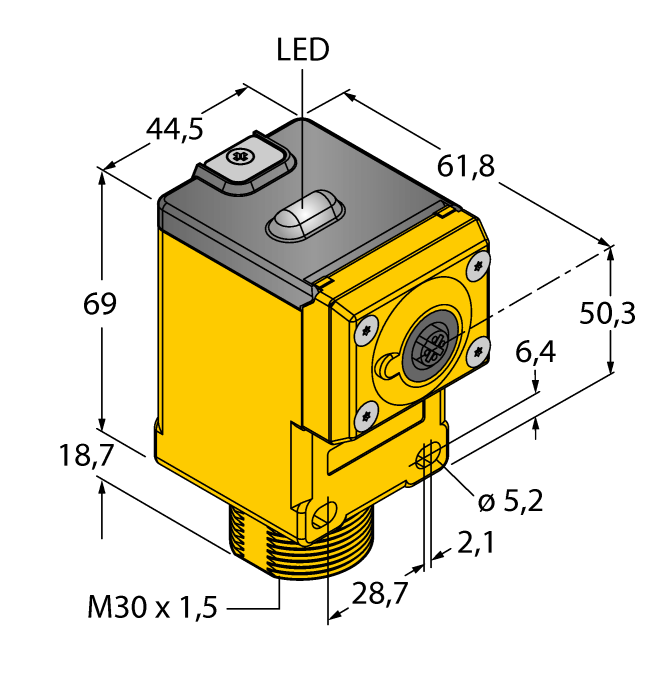

| Construction size | 66.5 x 44.5 x 97.1 mm, Q45 |
| Operating voltage | 3.6…5.5 VDC |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PBT Lexan, Yellow |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67 |
| Special features | wireless |
Mounting accessories
|
PKGC4.5S-10-RSC4.5T/TXL1405 | 6635762 |
|
NI3-M08-AP6X-V1131
Cylindrical; Threaded Barrel; 8 mm; Chrome-plated Brass |
4602930 |
|
TN840/920-Q175L200-H1147 | 7030466 |
|
VAS22-S80E-0.3-RSC5.31T/TXL | 6606506 |
