Product BT13SM8
Glass Fiber
Bifurcated Fiber
Order number: 3022452Alternative order number : 22452
- Operating mode: Diffuse/Retroreflective
- Stainless steel jacket, flexible
- Operating temperature of fiber-optic jacket: -140…+249 °C

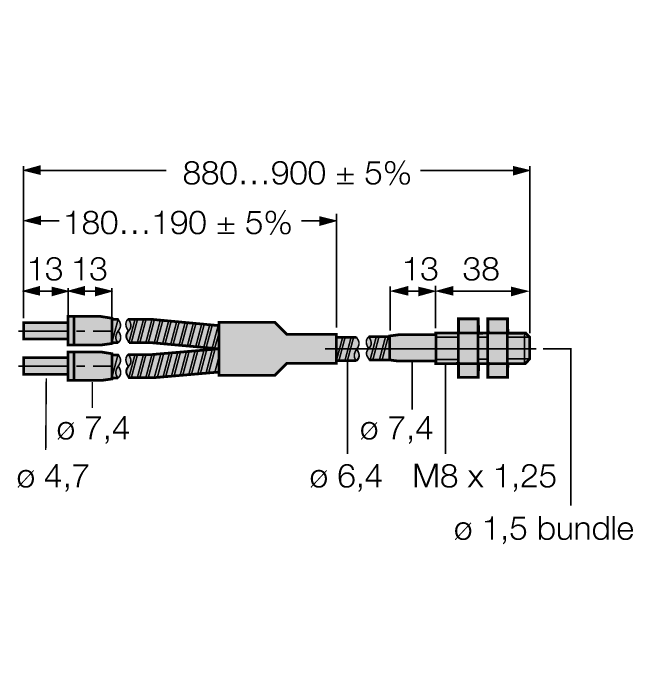

- End sleeve for probe, M8 × 1.25 threaded
- Optical fiber, bundle diameter: 1.6 mm
- Optical fiber, total length: ± 914 mm
General data
| EAN | 662488224523 |
| eCl@ss-Code (V5.1.4): | 27061090 -/- Ready-made optical fiber (not classified) |
| Customs tariff number | 90011090900 |
| Country of origin | US |
| Weight | 121 g |
Mounting accessories
|
RSM RKM 40-2M
Power supply cable, 7/8” connector, straight, 4-pin to 7/8” female connector, straight, 4-pin, cable length: 2 m, jacket material: PVC, yellow; other cable lengths and qualities available, see www.turck.com |
U2280-0 |
