Product B8141-0
Field-Wireable Connector

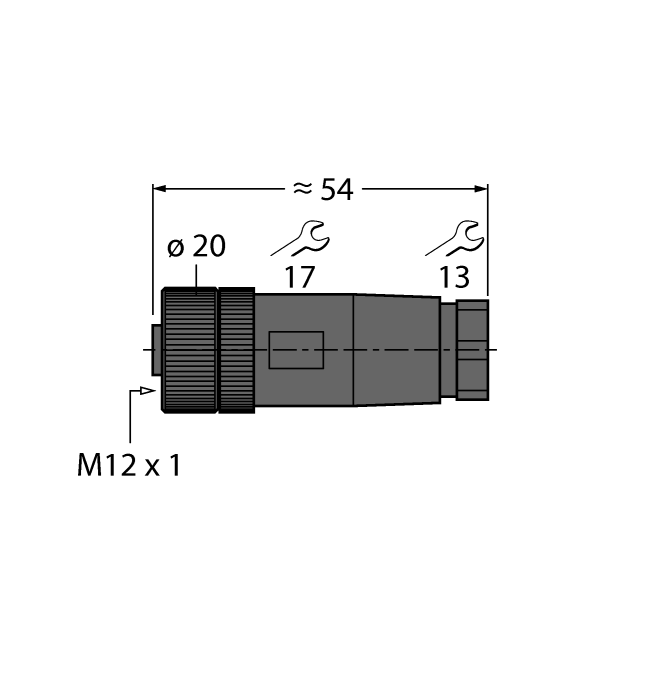

Female Connector M12 × 1, Straight
Order number: 69049- Plastic coupling nut
- UL approval
- Screw-clamp terminal
- A-coding
- 4-pin
- PG7 screw-in thread
- Cable feedthrough 4.0…6.0 mm
General data
| EAN | 4047101000221 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 16 g |
Technical Data
| Application | Signal |
| Connector A | Female, M12 × 1, Straight, A-coded |
| Number of pins | 4 |
| Connector body | Plastic, PA, Black |
| Coupling nut/screw | Plastic, PA, Black |
| Screw-in thread | PG7 |
| Voltage | 250 V |
| Current | 4 A |
| Protection class | IP67 |
| Approvals | cULus recognized |
