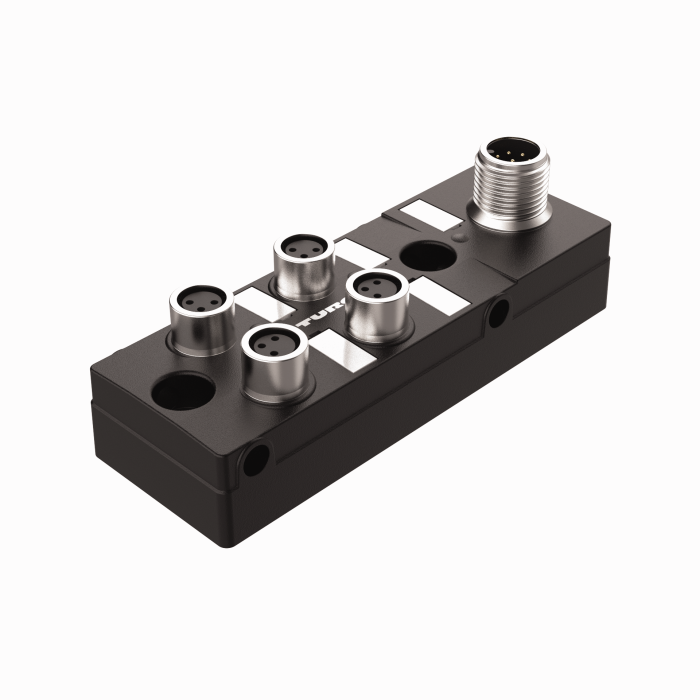

Product TB-4M8M-3-FS8
Passive Actuator/Sensor Junction Box, 4 Ports
M8 × 1 I/O Port with M12 Male Connector for the Supply Cable
Order number: U2-28812- Housing material: Nylon
- Housing color: black
- Protection class IP67
- RoHS conform
- cULus listed
- I/O port (number of pins): 3-pin + PE
General data
| EAN | 4047101469493 |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 96 g |
Technical Data
| Number of pins | 3 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Number of Pins | 8 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Voltage | 30 V |
| Protection class | IP67, IP68, IP69, IP69K |
| Approvals | CE, UKCA, RoHS |
