Product BSV8140-0/9
Field-Wireable Connector

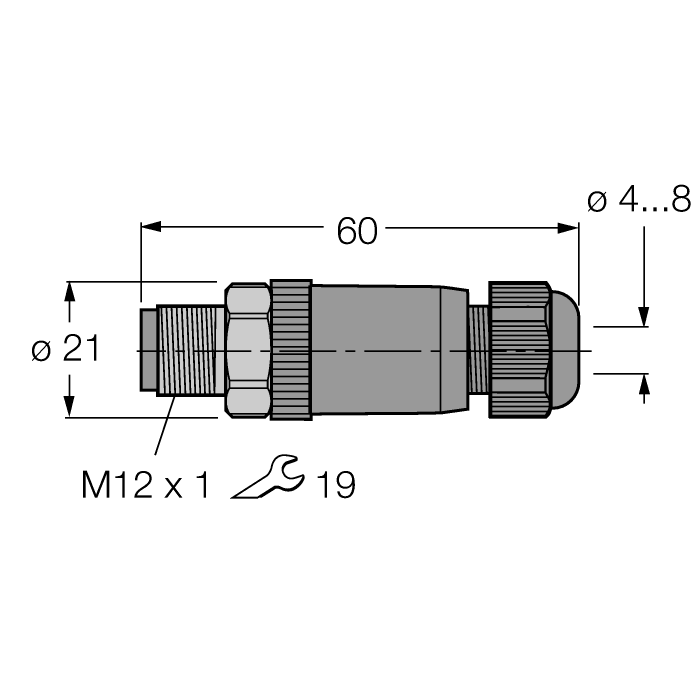

Male Connector M12 × 1, Straight
Order number: 6914537- 4-pin
- Stainless steel coupling nut, straight, 4-pin
- Cable outlet 4.0…8.0 mm
- For use in PROFIBUS-PA and FOUNDATION fieldbus applications
General data
| EAN | 4047101524550 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | CZ |
| Weight | 25 g |
Technical Data
| Application | Data |
| Connector A | Male, M12 × 1, Straight, A-coded |
| Number of pins | 4 |
| Connector body | Plastic, PA, Black |
| Coupling nut/screw | Stainless Steel, 1.4404, Passivated |
| Screw-in thread | PG9 |
| Network protocol | PROFIBUS-PA, FOUNDATION fieldbus |
| Voltage | 250 V |
| Protection class | IP67 |
Mounting accessories
|
PT2.5R-1004-I2-H1141/X | 6836141 |
|
PT4000PSIG-2105-U3-DT043P/R | 100047583 |
|
TL50BLBGY1R1Q | 3025655 |
|
DF-G2-NS-2M | 3087551 |
|
VS8APFF30B | 3803488 |
|
PS01VR-501-2UP8X-H1141 | 6831832 |
|
INS.P.FLOW-FCS_N1_2A4_NAEX.01 | D102316 |
