Product BKV8240-0/9
Field-Wireable Connector

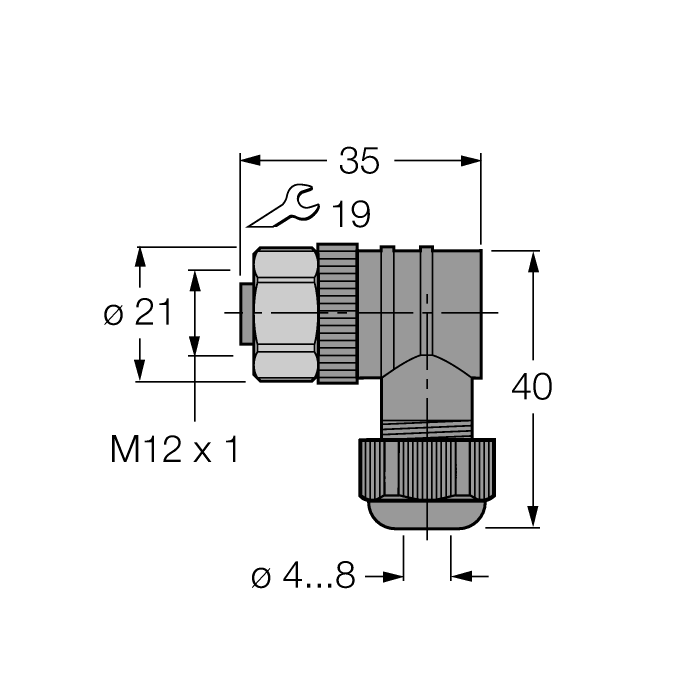

Female Connector M12 × 1, Angled
Order number: 6914540- 4-pin
- Stainless steel coupling nut, angled, 4-pin
- Cable outlet 4.0…8.0 mm
- For use in PROFIBUS-PA and FOUNDATION fieldbus applications
General data
| EAN | 4047101510874 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | CZ |
| Weight | 28 g |
Technical Data
| Application | Data |
| Connector A | Female, M12 × 1, Angled, A-coded |
| Number of pins | 4 |
| Connector body | Plastic, PA, Black |
| Coupling nut/screw | Stainless Steel, 1.4404, Passivated |
| Screw-in thread | PG9 |
| Network protocol | PROFIBUS-PA, FOUNDATION fieldbus |
| Voltage | 250 V |
| Protection class | IP67 |
Mounting accessories
|
PS01VR-501-2UP8X-H1141 | 6831832 |
|
INS.P.FLOW-FCS_N1_2A4_NAEX.01 | D102316 |
Connectivity accessories
|
TCG20-CC
Replacement connector for CAN interface. |
100002936 |
