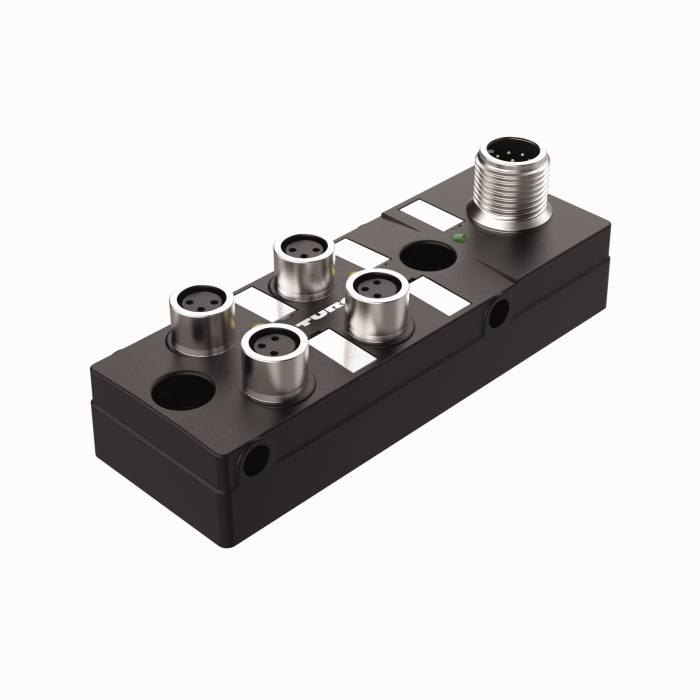

Product TB-4M8M-3N2-FS8
Passive Actuator/Sensor Junction Box, 4 Ports
M8 × 1 I/O Port with M12 Male Connector for the Supply Cable
Order number: U2-28813- Housing material: Nylon
- Housing color: black
- Protection class IP67
- RoHS conform
- cULus listed
- LED (NPN circuitry)
- I/O port (number of pins): 3-pin + PE
General data
| EAN | 4047101469509 |
| Customs tariff number | 85366990990 |
| Country of origin | MX |
| Weight | 99 g |
Technical Data
| Number of pins | 3 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Number of Pins | 8 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Voltage | 30 V |
| Protection class | IP67, IP68, IP69, IP69K |
| Special features | LED |
| Approvals | CE, UKCA, RoHS |
Mounting accessories
|
PS01VR-501-2UP8X-H1141 | 6831832 |
|
INS.P.FLOW-FCS_N1_2A4_NAEX.01 | D102316 |
Connectivity accessories
|
TCG20-CC
Replacement connector for CAN interface. |
100002936 |
