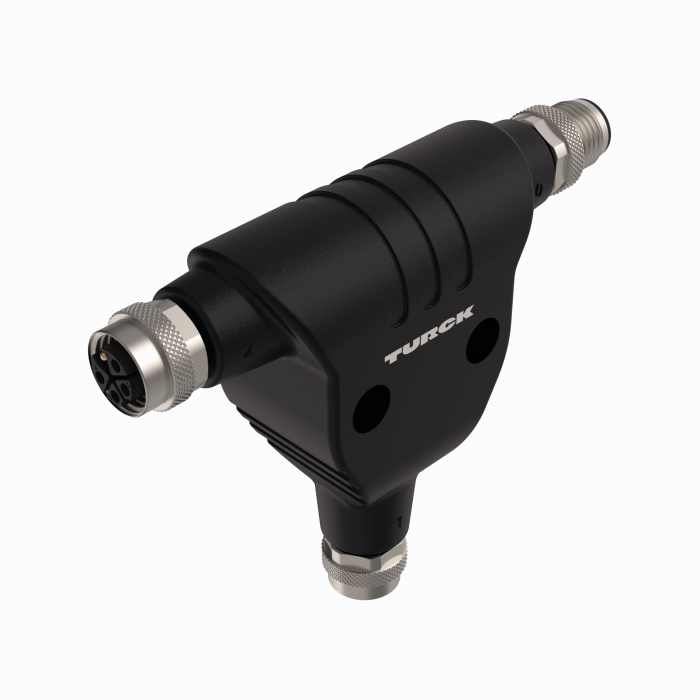

Product VT2-M12K-M5-2F5
M12 Power Splitters
T-Splitter
Order number: 100029331- M12-Stecker, 2x M12-Kupplung
- 4-polig + PE, K-codiert
- UL-Zulassung
- CE- und RoHS-konform
- Schutzart: IP65, IP67, IP68
General data
| EAN | 4047101542882 |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 112 g |
Technical Data
| Application | Power |
| Design | T-splitter |
| Connector A | Male, M12 × 1, K-coded |
| Number of pins | 4+PE |
| Coupling nut/screw | Brass, CuZn, Nickel-plated |
| Connector B | Female, M12 × 1, K-coded |
| Number of Pins | 4+PE |
| Coupling nut/retaining screw | Brass, CuZn, Nickel-plated |
| Voltage | 500 V |
| Current | 12 A |
| Protection class | IP65, IP67, IP68 |
| Approvals | cULus |
Mounting accessories
|
PS01VR-501-2UP8X-H1141 | 6831832 |
|
INS.P.FLOW-FCS_N1_2A4_NAEX.01 | D102316 |
Connectivity accessories
|
TCG20-CC
Replacement connector for CAN interface. |
100002936 |
