Product K50LGRA1YPQP

Zoom
Zoom

LED Signal Light

Beacon with Audible Signal

Order number: 3078808

Alternative order number : 78808

LED all-round visible
Continuous signal: 75dB
Individually controllable

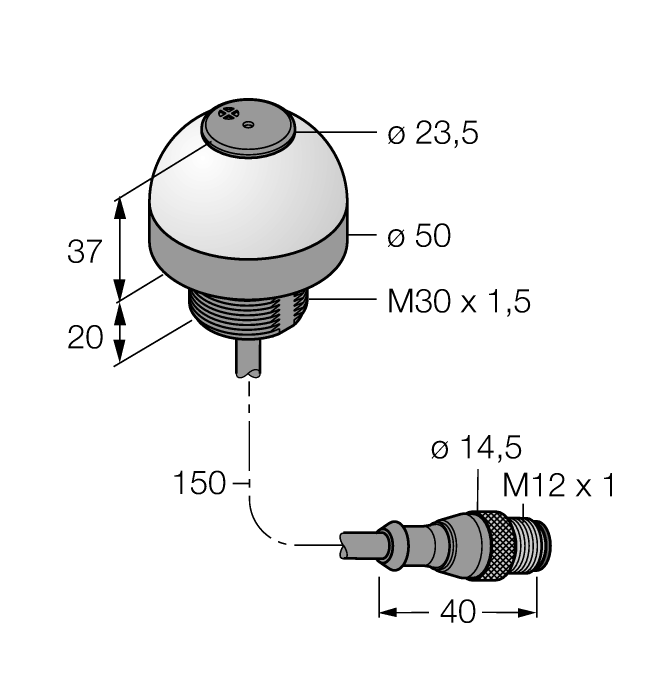

Mechanical screw-in thread M30x1.5
Protection class IP50

Multicolor: Green (COL 1) / Red (COL 2) / Yellow (COL 3)

Cable with male end M12 x 1, 5-pin
Operating voltage 18…30 VDC

Hide All Open All

Specifications
Download
Accessories

General data

EAN	662488788087
eCl@ss-Code (V5.1.4):	27371201 -/- Indicator
Customs tariff number	85318070000
Country of origin	US
Weight	142 g

Technical Data

Cable length	0.150 m

Data Sheets

German	1248 KB
English	1248 KB
French	1249 KB
Spanish	1249 KB
Czech	1249 KB
Dutch	1248 KB
Romanian	1249 KB
Russian	1340 KB
Polish	1249 KB
Chinese	1314 KB
Turkish	1249 KB

General Catalog

LED solutions	14775 KB

Product Flyer

Selection Guide — Lighting and Indicators	4409 KB

Mounting accessories

	PT2.5R-1004-I2-H1141/X	6836141
	PT4000PSIG-2105-U3-DT043P/R	100047583
	TL50BLBGY1R1Q	3025655
	DF-G2-NS-2M	3087551
	VS8APFF30B	3803488
	PS01VR-501-2UP8X-H1141	6831832
	INS.P.FLOW-FCS_N1_2A4_NAEX.01	D102316

Connectivity accessories

	TCG20-CC Replacement connector for CAN interface.	100002936
