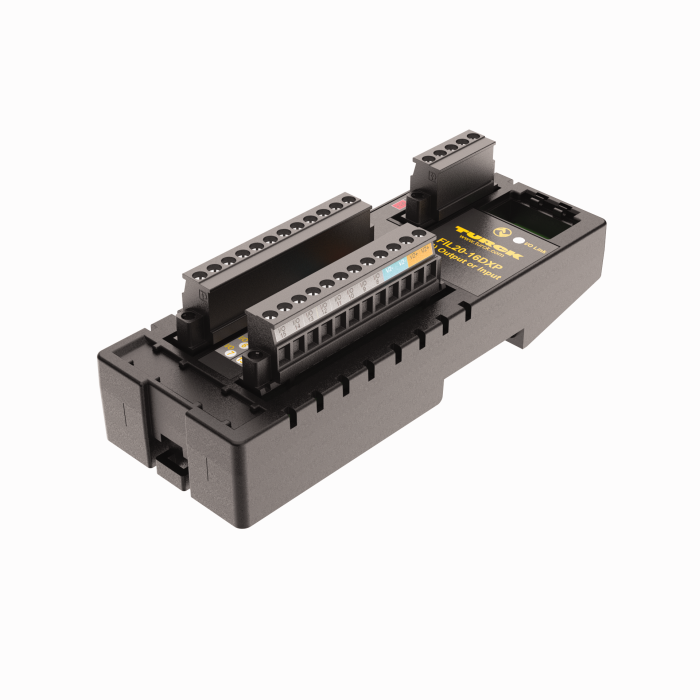

Product FIL20-16DXP
I/O Hub for Connection of Digital Signals to IO-Link Master
16 Universal Digital Channels, PNP
Order number: 100028254- Rugged, I/O hub in IP20
- Eight universal digital channels
- Metal screw terminal connectors
- 8 universal digital channels, DI/DO
- 24 VDC, PNP
- Output current: 1.0 A
- I&M data sets support installation and maintenance
- IO-Link diagnostics for short circuit and supply voltage
- Mounting on a DIN rail possible
General data
| EAN | 4047101645460 |
| Customs tariff number | 85176200000 |
| Country of origin | US |
| Weight | 215 g |
Technical Data
| Network protocol | IO-Link |
Mounting accessories
|
PS01VR-501-2UP8X-H1141 | 6831832 |
|
INS.P.FLOW-FCS_N1_2A4_NAEX.01 | D102316 |
Connectivity accessories
|
TCG20-CC
Replacement connector for CAN interface. |
100002936 |
