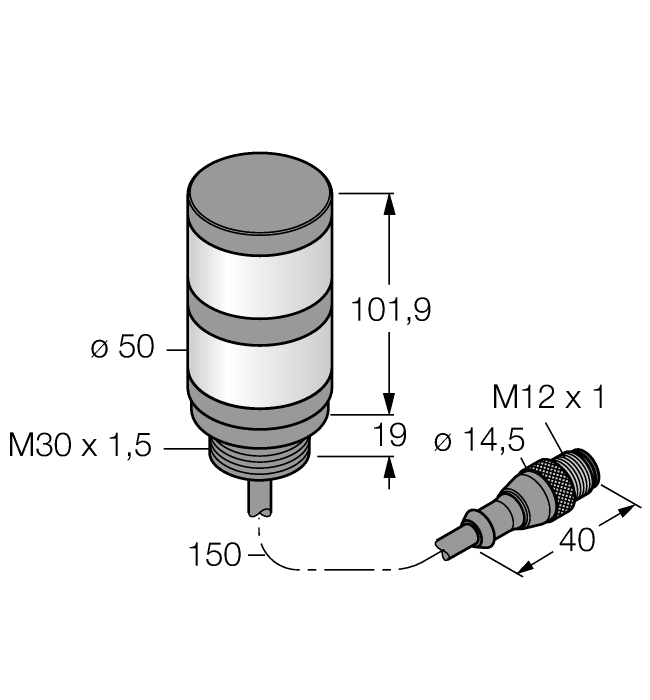

Product TL50HYR1QPMA
LED Signal Light
High-intensity Tower Light
Order number: 3087139Alternative order number : 87139
- Plastic housing, black
- Protection against electromagnetic and high-frequency interference
- Protection class IP67
- PUR cable with M12 × 1 male connector, 150 mm
- Colors: Yellow (COL 1)/Red rotating (COL 2)
- Operating voltage: 18…30 VDC or 24 VAC with 45 mA per LED color
- Inputs: PNP/NPN
General data
| EAN | 662488871390 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85318070000 |
| Country of origin | US |
| Weight | 172 g |
Technical Data
| Cable length | 0.150 m |
Mounting accessories
|
PS01VR-501-2UP8X-H1141 | 6831832 |
|
INS.P.FLOW-FCS_N1_2A4_NAEX.01 | D102316 |
Connectivity accessories
|
TCG20-CC
Replacement connector for CAN interface. |
100002936 |
