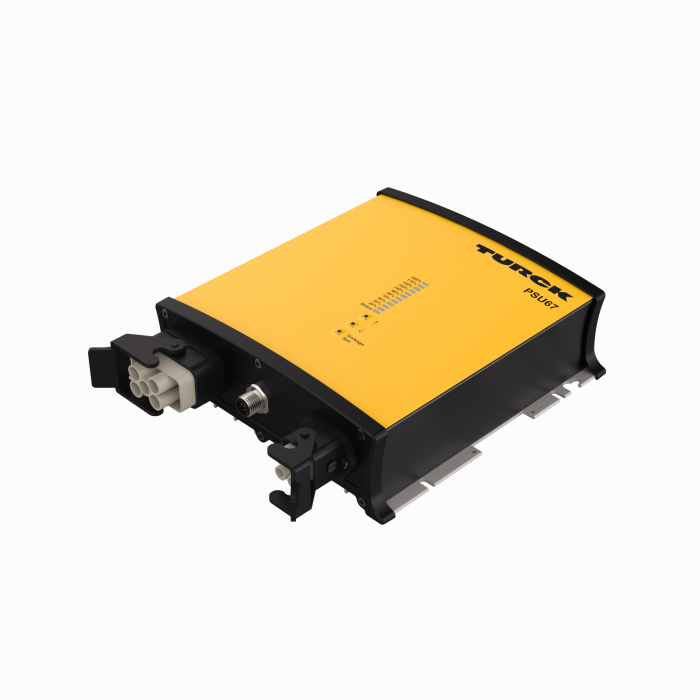

Product PSU67-3P-1H2-1H0-24250
Smart Power Supply Module in IP67
24…28 VDC Output Voltage
3-Phase, 25-A Output Current
Order number: 100028239- Broad temperature range
- Status LED
- High efficiency, > 95 %
- 3-phase AC input, Han Q4/2
- 24 VDC output, 1 × Han Q4/0
- LED interface and control buttons for maximum flexibility
General data
| EAN | 4047101540116 |
| eCl@ss-Code (V5.1.4): | 27049002 -/- DC supply |
| Customs tariff number | 85044083900 |
| Country of origin | CZ |
| Weight | 1581 g |
Mounting accessories
|
RKSW-X2X-10M | 100048895 |
|
NI1.5-KSR13A-2AD4X2-0.2-RS4.4T/S34
Dual sensor, plastic |
4430122 |
|
S18AW3FF100 W/30 | 3032719 |
|
TW865-868-Q14L37-M-HT-B40 | 100045255 |
|
TP-104A-G1/8-H1141-L035
temperature detector for liquid and gaseous media |
9910840 |
|
TL505ALSKQ | 3804980 |
|
RSM43-18M | 6915624 |
|
PS01VR-501-2UP8X-H1141 | 6831832 |
|
INS.P.FLOW-FCS_N1_2A4_NAEX.01 | D102316 |
