Product S4BR30-1500-S

Zoom
Zoom

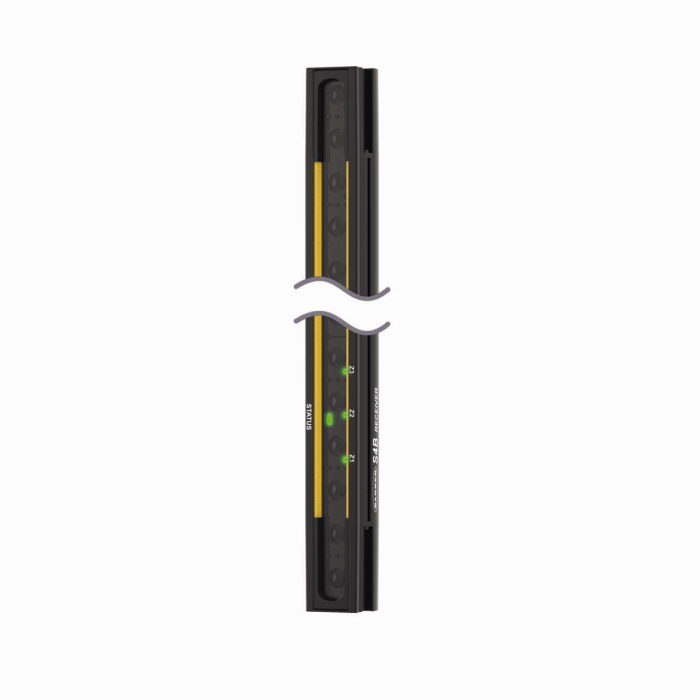

Safety Light Curtain

Receiver

Type 4, Resolution 30 mm, Scan Field Height 1500 mm, Range 12 m

Order number: 3812395

Resolution 30 mm
Scan field height 1500 mm
Range 12 m

Intuitive setting via DIP switches
Protection class IP65

Operating voltage 24 VDC ± 15 %
2 redundant OSSD safety outputs
1 external device monitoring input
1 weak beam strength output

2-color status indicator
3-color zone status indicator
Removable Disconnect (RD) connector
The safety light curtain is supplied without the mounting and connection accessories required for operation

Type 4 (IEC 61496‐1, -2)
Safety Integrity Level SIL 3 (IEC 61508)
Performance Level PL e (EN ISO 13849)
Safety category 4 (EN ISO13849)
Safety data can only be found in the associated manual or the associated SISTEMA library

Hide All Open All

Specifications
Download
Accessories

General data

EAN	662488554460
Customs tariff number	85365019000
Country of origin	CN
Weight	2937 g

Data Sheets

German	2043 KB
English	2043 KB
French	2044 KB
Spanish	2044 KB
Czech	2044 KB
Dutch	2043 KB
Romanian	2044 KB
Russian	2119 KB
Polish	2044 KB
Chinese	2106 KB
Turkish	2044 KB

EC Declaration of Conformity

S4B Safety Light Curtain EC Declaration of Conformity	5328 KB

Manual

S4B Safety Light Curtain Instruction Manual	3331 KB
S4B Safety Light Curtain — Instructions for Use	2071 KB
S4B Safety Light Curtain Semi-Annual Checkout	120 KB
S4B Safety Light Curtain Daily Checkout	217 KB
S4B Safety Light Curtain Important Information	204 KB

Product Flyer

Overview of Safety Solutions	14913 KB
Safety Solutions	14290 KB
S4B Safety Light Curtain	1280 KB

Project Planning Software

SISTEMA Library According to EN ISO 13849-1: The library contains all Banner safety products along with their determined Safety Integrity Level (SIL) or Performance Level (PL), as well as safety-related key figures such as Probability of Failure per Hour (PFH) and Safety Category (1…4)

Turck Software Manager | Smart and Easy Software Alignment: The free software supports the configuration, parameterization, programming and commissioning of Turck solutions by checking that existing Turck software components such as setups, IODD, GSDML, DTM, FDT, CODESYS packages, SISTEMA and visualization libraries, ARGEE components, etc. are up to date, as well as checking for new versions and downloading/installing these on request.

Mounting accessories

	SLLCR40-840-S	3809010
	TL50CGRAOSQ	3091367
	MNS.P.SAFETY-TBIP_L_FDIO1_2IOL.FR	100000665
	FW-EWKPM0414-PS-S-0810 Field-wireable female connector, M12 Power, S-coded, straight, 3-pin + PE, screw terminal connection, cable feedthrough 8.0 to 10 mm, core cross-section/terminal capacity 1.5 to 2.5 mm², plastic housing, metal retaining screw	100036620
	RSS RSSD 441-2M	U-02620
	Q12RN6FF50Q3	3077105
	PS01VR-501-2UP8X-H1141	6831832
	INS.P.FLOW-FCS_N1_2A4_NAEX.01	D102316

Connectivity accessories

	TCG20-CC Replacement connector for CAN interface.	100002936
