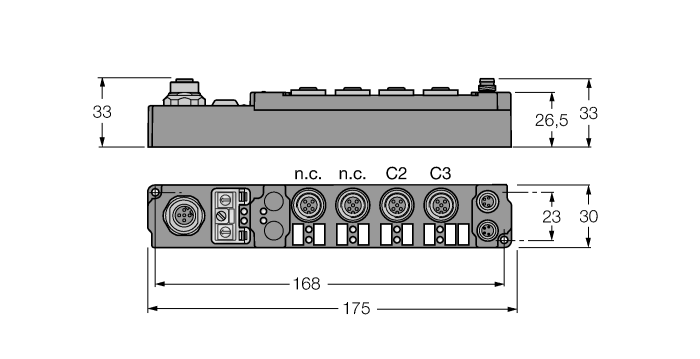

Product SDPB-0002D-0002
piconet stand-alone module for PROFIBUS-DP
2-channel Pulse Width Modulation (PWM)
Order number: 6824060- Pulse width modulation
- 2-channel
- 2.5 A per channel
- Configuration interface
- Parameterizable functions
- Supported via I/O‐ASSISTANT 2
- Direct connection to the fieldbus
- Fibre-glass reinforced housing
- Shock and vibration tested
- Encapsulated module electronics
- Metal connector
- Degree of protection IP67
General data
| EAN | 4047101177855 |
| eCl@ss-Code (V5.1.4): | 27250307 -/- Technology module (periphery) |
| Customs tariff number | 85176200000 |
| Country of origin | DE |
| Weight | 149 g |
Technical Data
| Network protocol | PROFIBUS-DP |
| Approvals | cULus |
