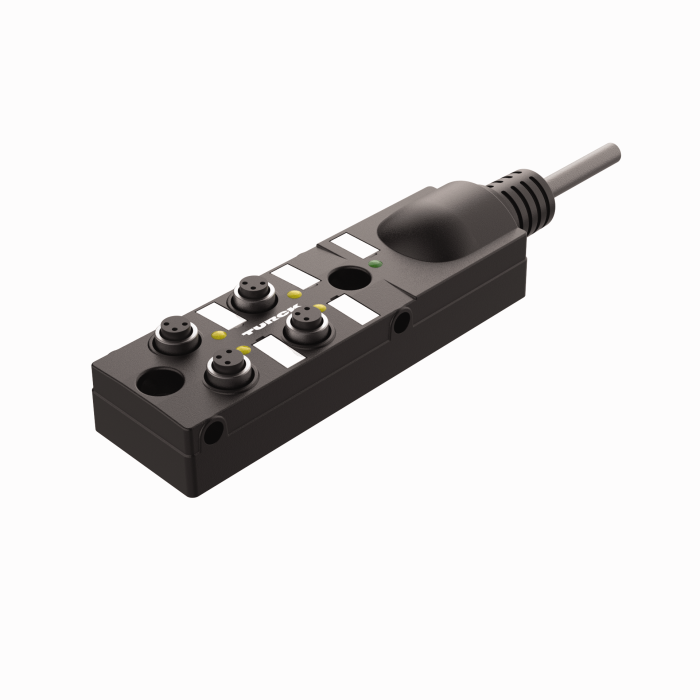

Product TB-4M8Z-3P2-5
Passive Actuator/Sensor Junction Box, 4 Ports
Ø 8 mm, I/O Slot with Integral Homerun Cable
Order number: UX00408- Housing material: Nylon
- Housing color: black
- Protection class IP67
- RoHS conform
- cULus listed
- LED (PNP circuit)
- I/O port (number of pins): 3-pin + PE
- General purpose cable
- PVC jacket, black, shielded, 6 × 24 AWG
- -40 °C cold bending strength
- Fire classes: UL1061, CSA FT1
General data
| EAN | 4047101469554 |
| Customs tariff number | 85444290900 |
| Country of origin | MX |
| Weight | 1000 g |
Technical Data
| Number of pins | 3 |
| Voltage | 30 V |
| Cable diameter | Ø 5.13 mm |
| Cable length | 5.0 m |
| Cable jacket | PVC, Black |
| Number of Conductors | 6 |
| Protection class | IP67 |
| Special features | LED |
| Approvals | CE, UKCA, RoHS |
