Product BTS-DSU35-ZF10-M12
Mounting Accessories

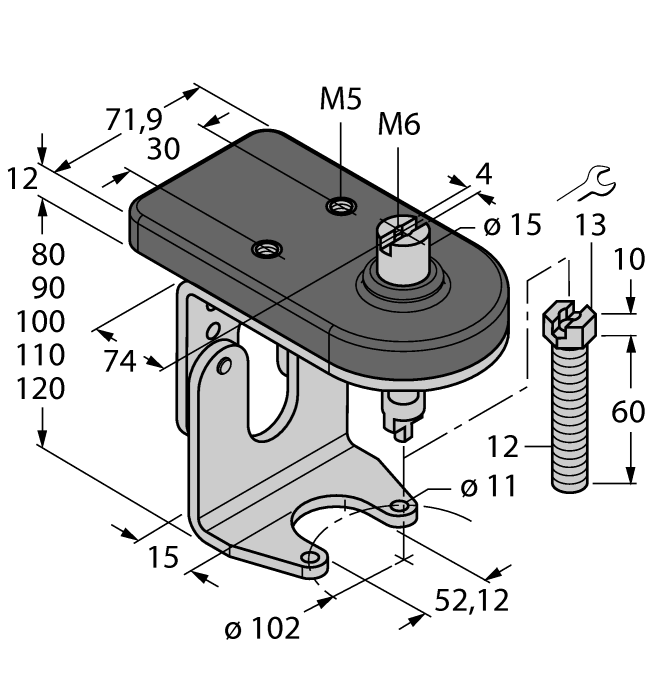

Mounting kit for manual valves
Order number: 6901130- Mounting kit with mounting plate for dual sensor and actuator (puck)
- For manual valves of the size F10 acc. to ISO 5211 / DIN 3337
- Height-adjustable
- Adjustable shaft peg with self-locking M12 nut
- Robust stainless steel
- Vestamid mounting plate for sensors
General data
| EAN | 4047101246414 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 90319000000 |
| Country of origin | DE |
| Weight | 632 g |
