Product TB-4M8Z-3P2-FS8

Zoom
Zoom

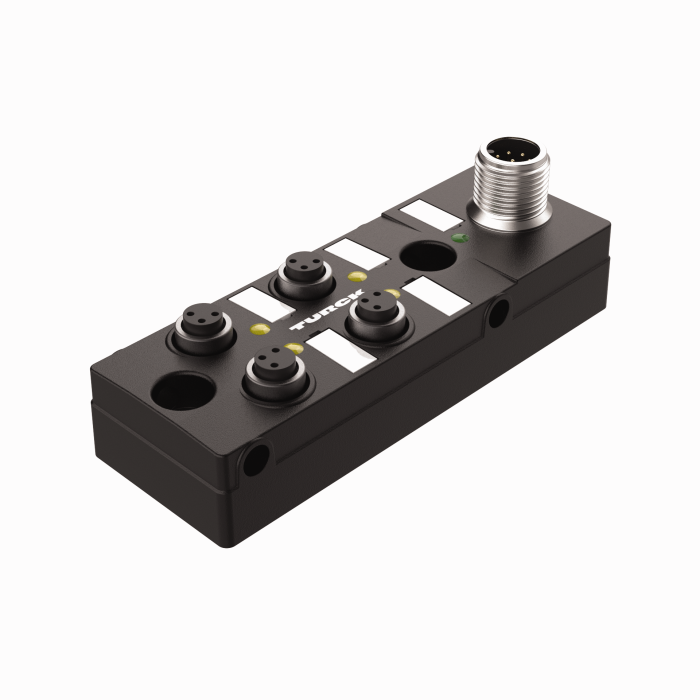

Passive Actuator/Sensor Junction Box, 4 Ports

Ø 8 mm, I/O Port with M12 Male Connector for the Supply Cable

Order number: U2-28308

Housing material: Nylon
Housing color: black
Protection class IP67
RoHS conform
cULus listed

LED (PNP circuit)

I/O port (number of pins): 3-pin + PE

Hide All Open All

Specifications
Download
Accessories

General data

EAN	4047101469400
Customs tariff number	85366990990
Country of origin	MX
Weight	208.654 g

Technical Data

Number of pins	3
Number of Pins	8
Voltage	30 V
Protection class	IP67
Special features	LED
Approvals	CE, UKCA, RoHS

Data Sheets

German	1165 KB
English	1165 KB
French	1166 KB
Spanish	1165 KB
Czech	1165 KB
Dutch	1165 KB
Romanian	1166 KB
Russian	1216 KB
Polish	1166 KB
Chinese	1235 KB
Turkish	1166 KB

Approval/Declaration

CE Declaration of Conformity	50 KB

CAD File

3D-1 (STP)	792 KB

CAD STP File

3D STP file	818 KB

General Catalog

Connectivity	11874 KB

Product Overview

Connection and Distribution	744 KB
Connection technology type code	390 KB

Mounting accessories

	PS01VR-501-2UP8X-H1141	6831832
	INS.P.FLOW-FCS_N1_2A4_NAEX.01	D102316
	K50ALBT2GRHQ	3802582
	REI-12HA4E-4B2048-H1181	100010541
	SLLP40-630P88	3089717
	T8AP6RQ	3066668

Connectivity accessories

	TCG20-CC Replacement connector for CAN interface.	100002936
