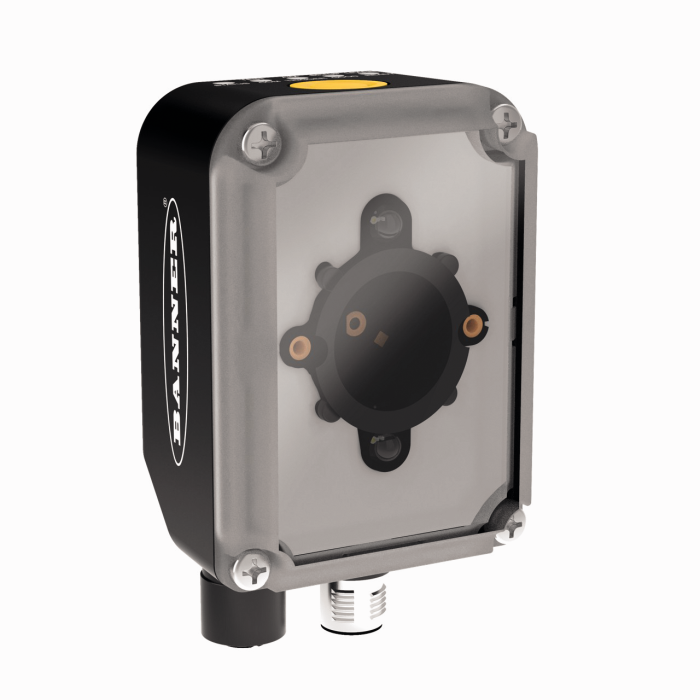

Product ABR72L16-RDE2
Barcode Reader — Scanner
Order number: 3808841- Camera-based barcode reader, 1D/2D codes
- 2-MP resolution, 1600 × 1200
- 16-mm lens, autofocus
- Integrated lighting, red, diffuse DPM
- Operating voltage 10…30 VDC
- Three PNP/NPN switching outputs, selectable via software
- Industrial Ethernet: PROFINET, EtherNet/IP, Modbus/TCP
- Serial interface, RS232/RS422
- Compact aluminum housing
- Protection class IP67
General data
| EAN | 662488071042 |
| Customs tariff number | 85365019000 |
| Country of origin | HU |
| Weight | 517.09 g |
Mounting accessories
Connectivity accessories
|
TCG20-CC
Replacement connector for CAN interface. |
100002936 |
