Product WKCV 5732-2M/CS15915
Cable for RFID Application in the Food Industry
Connection Cable
Order number: UX04211- Jacket material: TPE
- Jacket color: anthracite
- Power and data pair: AWG 2/22
- End open

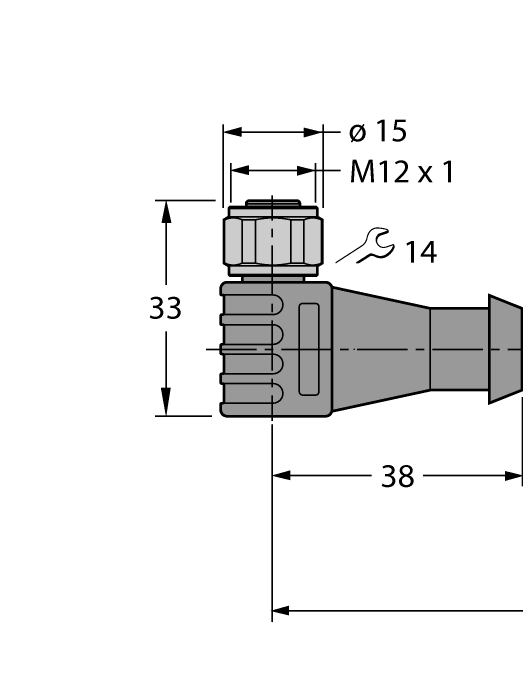

- M12 female, angled, stainless steel
- Cable length: 2.0 m
General data
| EAN | 4047101443875 |
| eCl@ss-Code (V5.1.4): | 27060307 -/- Bus cable |
| Customs tariff number | 85444290900 |
| Country of origin | US |
| Weight | 1000 g |
Technical Data
| Application | RFID |
| Design | Connection Cable |
| Connector A | Female, M12 × 1, Angled, A-coded |
| Number of pins | 5 |
| Connector body | Plastic, TPU, Black |
| Coupling nut/screw | Stainless Steel, V4A |
| Voltage | 250 V |
| Current | 4 A |
| Cable diameter | Ø 8.51 mm |
| Cable length | 2.0 m |
| Cable jacket | TPE, Anthracite |
| Number of Conductors | 2 |
| Protection class | IP68 |
Mounting accessories
|
PS01VR-501-2UP8X-H1141 | 6831832 |
|
INS.P.FLOW-FCS_N1_2A4_NAEX.01 | D102316 |
|
PT2.5R-1004-I2-H1141/X | 6836141 |
|
PT4000PSIG-2105-U3-DT043P/R | 100047583 |
|
TL50BLBGY1R1Q | 3025655 |
|
DF-G2-NS-2M | 3087551 |
|
VS8APFF30B | 3803488 |
