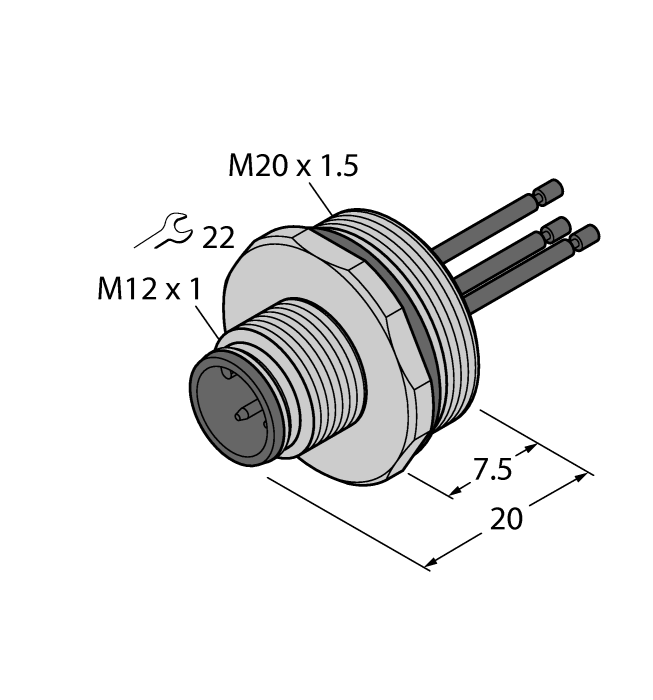

Product EC-FSE5-0.5/20
Male Receptacle with Stranded Wires, Front-mounted
Order number: 6935747- M12 × 1 male receptacle
- Protection class IP67
- Stainless steel receptacle housing
- Front panel mounting
- Connected via stranded wires
- 4-pin + PE
- Stranded wire length: 0.5 m
General data
| EAN | 4047101392623 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 35 g |
Technical Data
| Application | Signal |
| Connector A | Male, M12 × 1, Straight, A-coded |
| Number of pins | 4+PE |
| Flange housing | Stainless Steel, 1.4404 (AISI 316L) |
| Mounting type | front panel mounting |
| Screw-in thread | M20 × 1.5 |
| Flange housing | Stainless Steel, 1.4404 (AISI 316L) |
| Voltage | 60 V |
| Current | 4 A |
| Cable length | 0.5 m |
| Number of Conductors | 4 |
| Protection class | IP67 |
| Approvals | CE |
