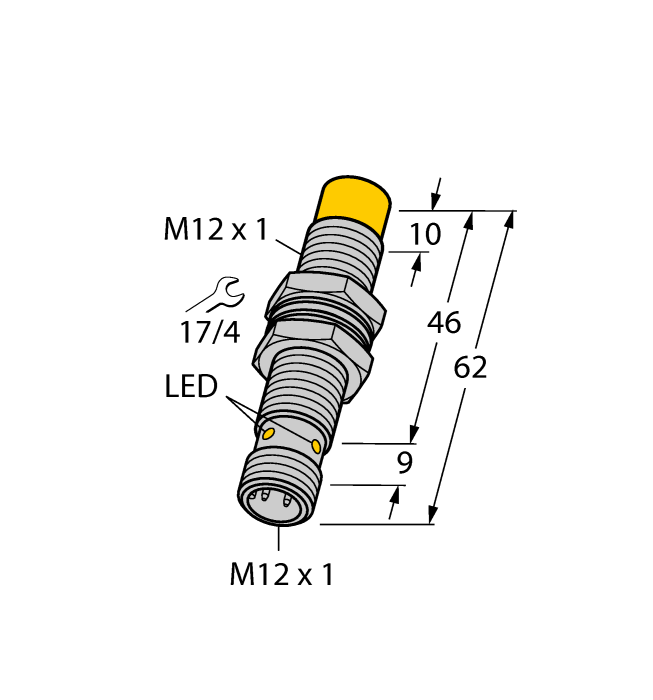

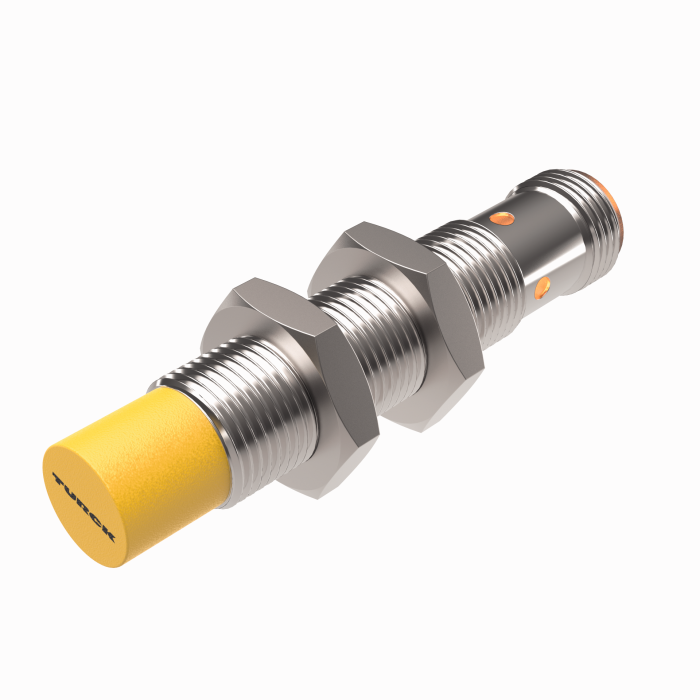

Product NI4-M12-IOLU69X2-H1141
Inductive Sensor
With Analog Output and IO-Link Communication
Order number: 100001076- M12 × 1 threaded barrel
- Chrome-plated brass
- Configuration and communication via IO-Link v1.1 or standard I/O
- Adjustable distance value in 12-bit IO-Link process data
- Switchpoint configurable via two teach points
- Switching output freely configurable
- Identification via 32-byte memory
- Temperature monitoring with adjustable limits
- 4‐wire, 15…30 VDC
- Analog output, 0…10 V (2…10 V parameterizable)
- M12 × 1 connector
General data
| EAN | 4047101447354 |
| eCl@ss-Code (V5.1.4): | 27270802 -/- Indcutive distance sensor |
| Customs tariff number | 85365019000 |
| Country of origin | DE |
| Weight | 33 g |
Data Sheets
| German | 1988 KB |
| English | 1988 KB |
| French | 1989 KB |
| Spanish | 1989 KB |
| Czech | 1989 KB |
| Dutch | 1988 KB |
| Romanian | 1989 KB |
| Russian | 2045 KB |
| Polish | 1989 KB |
| Chinese | 2056 KB |
| Turkish | 1990 KB |
Configuration File
Configuration Software
IO-Link Manufacturer's Declaration
Instructions for Use
Manual
Product Flyer
