Product RSCV4.4T-3/TEL

Actuator and Sensor Cable, PVC

Connection Cable

Order number: 6628704

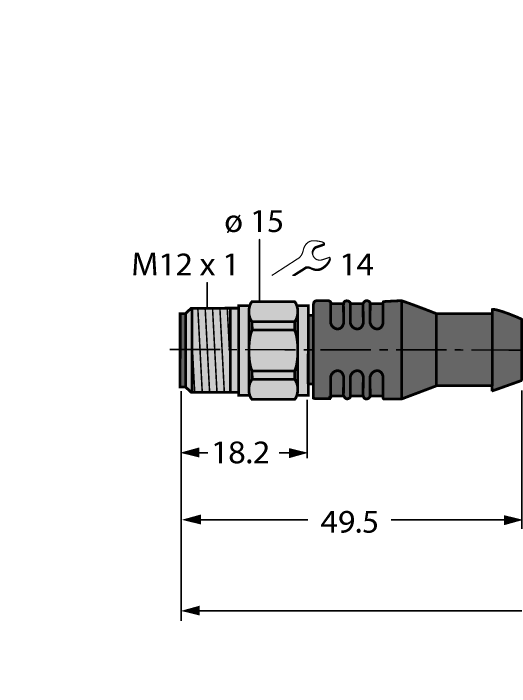

Male M12, straight, 4-pin
Stainless steel coupling nut/screw

Jacket material: PVC
Jacket color: black
Resistant to chemicals and oils
Flame retardant
Resistant to acids and alkaline solutions
Resistant to microbes and hydrolysis
LABS free
Protection class: IP67, IP69K

Cable length: 3 m

Hide All Open All

Specifications
Download
Accessories

General data

EAN	4047101322699
eCl@ss-Code (V5.1.4):	27250107 -/- Connection cable sensor-actuator
Customs tariff number	85444290900
Country of origin	PL
Weight	126 g

Technical Data

Application	Signal
Design	Connection Cable
Connector A	Male, M12 × 1, Straight, A-coded
Number of pins	4
Connector body	Plastic, TPU, Black
Coupling nut/screw	Stainless Steel, V4A
Voltage	250 V
Current	4 A
Cable diameter	Ø 4.6 mm
Cable length	3.0 m
Cable jacket	PVC, Black
Number of Conductors	4
Protection class	IP67, IP69K
Approvals	cULus
