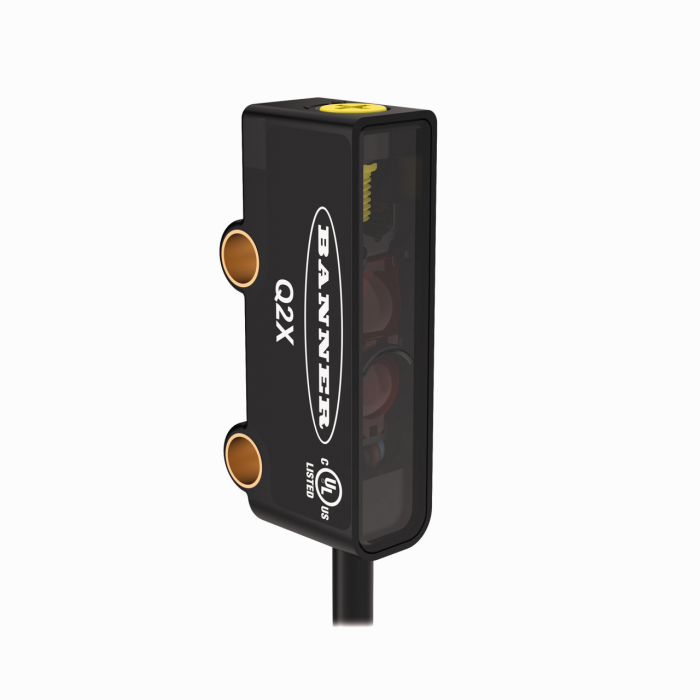

Product Q2XKLAF3IR-Q
Photoelectric Sensor
Diffuse-Mode Sensor
With Switching Output and IO-Link
Order number: 3816155- Miniature sensor with slim housing for confined spaces
- Protection class IP67
- Connection via 150-mm PVC cable with M8 × 1 male connector, 4-pin
- Range: 3000 mm
- Crosstalk protection
- Operating voltage: 12…30 VDC
- Output 1: PNP switching output with IO-Link communication
- Output 2: PNP switching output, alarm output or Pulse Frequency Modulation (PFM)
- Transmission of process value and parametrization via IO-link
General data
| EAN | 662488118907 |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 18 g |
Mounting accessories
|
PS01VR-501-2UP8X-H1141 | 6831832 |
Connectivity accessories
|
TCG20-CC
Replacement connector for CAN interface. |
100002936 |
