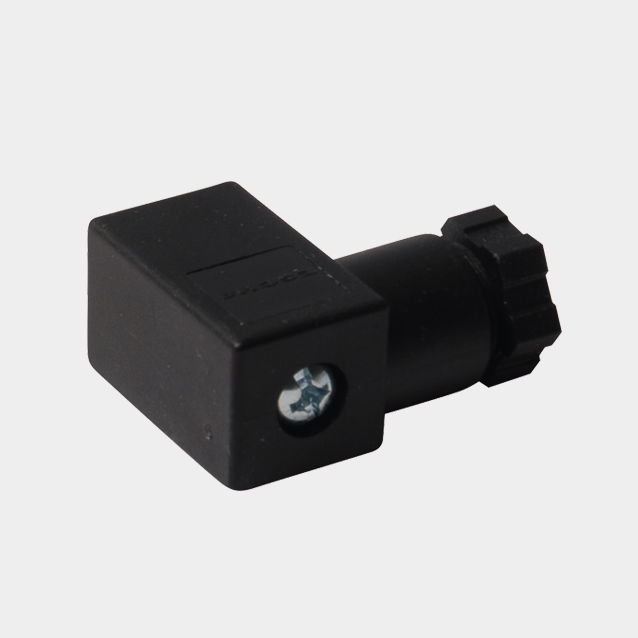

Product VC-CC8.21-0.220-K
Field-Wireable Connector
Design C
Order number: 8028726- Screw-clamp terminal
- 2-pin + PE
- Cable feedthrough: 4…6 mm
- Conductor cross-section: 3 × 0.34 mm2
- Central screw: M2.5 × 27
- Screw-in thread: M12 × 1
- Protection class: IP65
- Scope of delivery:
- Valve connector, central screw, pressure screw, seal, sealing ring and pressure ring
General data
| EAN | 4047106014537 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | HU |
| Weight | 12 g |
Technical Data
| Application | Signal |
| Connector A | Valve connector, Design C |
| Number of pins | 2+PE |
| Connector body | Plastic, PA6 GF30, Black |
| Protective component | without protective circuitry |
| Screw-in thread | M12 × 1 |
| Voltage | 230 V |
| Current | 5 A |
| Protection class | IP65 |
