Product RSP56PL-0.2/2RKP56PL-0.2/0.2/CS17642
M12 Power Splitters

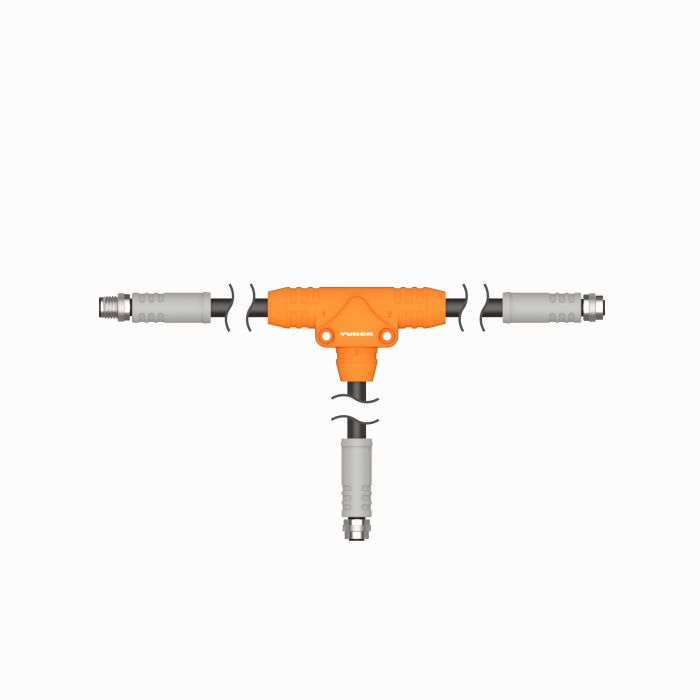

T-Splitter
Order number: 100029893- M12 Power, Male, 4-pole + FE, L-code
- 2x M12 Power, Female, 4-pole + FE, L-code
- Power tray/exposed run/direct burial cable
- TPE jacket, black, 5 × 16 AWG
- Sunlight resistant
- -40 °C cold bending strength
- Oil resistant
- Fire classes: UL1685 FT4, CSA FT1, CSA FT4, IEC 60332-3-22
General data
| EAN | 4047101577235 |
| Customs tariff number | 85444290900 |
| Country of origin | US |
| Weight | 210 g |
Technical Data

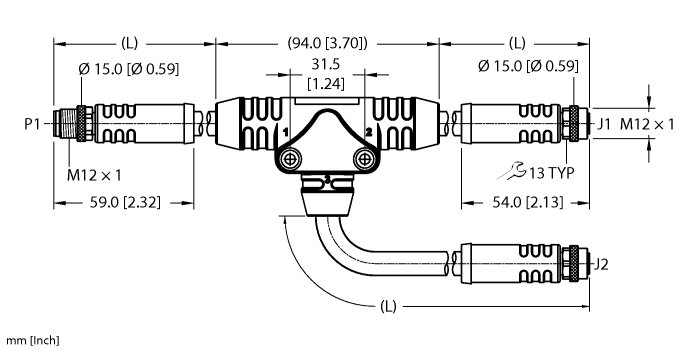

| Design | T-splitter |
| Connector A | Male, M12 × 1, L-coded |
| Number of pins | 4+FE |
| Connector body | Plastic, TPU, Gray |
| Coupling nut/screw | Brass, CuZn, Nickel-plated |
| Connector B | Female, M12 × 1, L-coded |
| Number of Pins | 4+FE |
| Connector body | Plastic, TPU, Gray |
| Coupling nut/retaining screw | Brass, CuZn, Nickel-plated |
| Voltage | 63 V |
| Current | 12 A |
| Cable diameter | Ø 10.01 mm |
| Cable length | 0.2, 0.2, 0.2 m |
| Cable jacket | TPE, Black |
| Number of Conductors | 5 |
