Product TB-8M8M-3P2-10

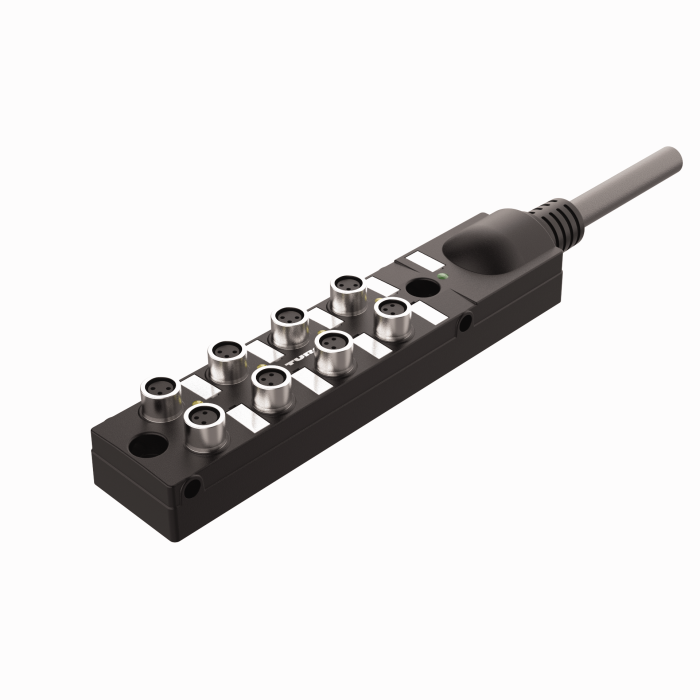

Passive Actuator/Sensor Junction Box, 8 Ports
M8 × 1 I/O Port with Integral Homerun Cable
Order number: UX13213- Housing material: Nylon
- Housing color: black
- Protection class IP67
- RoHS conform
- cULus listed
- LED (PNP circuit)
- I/O port (number of pins): 3-pin + PE
- General purpose cable
- PVC jacket, black, shielded, 10 × 24 AWG
- -40 °C cold bending strength
- Fire classes: UL1061, CSA FT1
General data
| EAN | 4047101485271 |
| Customs tariff number | 85444290900 |
| Country of origin | MX |
| Weight | 770 g |
Technical Data
| Application | Signal |
| Number of pins | 3 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Flange housing | Brass, CuZn, Nickel-plated |
| Voltage | 30 V |
| Cable diameter | Ø 6.6 mm |
| Cable length | 10.0 m |
| Cable jacket | PVC, Black |
| Number of Conductors | 10 |
| Protection class | IP67, IP68, IP69, IP69K |
| Special features | LED |
| Approvals | CE, UKCA, RoHS |
