Product DT04-3PG-A-10/TXL

Deutsch Connector

Connection Cable

Order number: 100000438

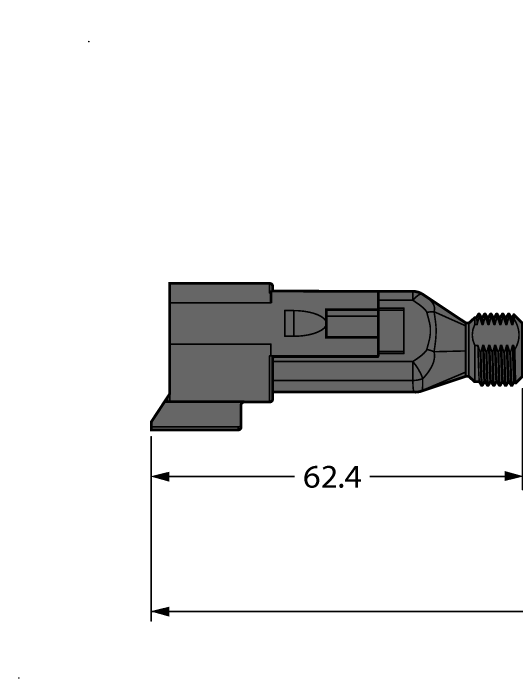

Deutsch connector DT04, straight, 3-pin
With M12 × 1 thread for thermowell

Jacket material: TPE-U (PUR)
Jacket color: black, similar to RAL 7021
Suitable for drag chain use
Flame retardant
Halogen free acc. to DIN VDE 0472 part 815
RoHS compliant
Protection classes IP67 and IP69K

Cable length: 10 m

Hide All Open All

Specifications
Download
Accessories

General data

EAN	4047101438475
eCl@ss-Code (V5.1.4):	27250107 -/- Connection cable sensor-actuator
Customs tariff number	85444290900
Country of origin	DE
Weight	1 g

Technical Data

Application	Mobile Equipment
Design	Connection Cable
Connector A	Male, Deutsch DT, Straight
Number of pins	3
Connector body	Plastic, TPU, UL 94, Black
Coupling nut/screw	Nickel-plated
Voltage	230 V
Current	8 A
Cable diameter	Ø 5.3 mm
Cable length	10.0 m
Cable jacket	PUR, Black
Number of Conductors	3
Protection class	IP67, IP69K

Data Sheets

German	446 KB
English	446 KB
French	447 KB
Spanish	446 KB
Czech	446 KB
Dutch	446 KB
Romanian	447 KB
Russian	462 KB
Polish	447 KB
Chinese	512 KB
Turkish	447 KB

General Catalog

Connectivity	11874 KB

Product Flyer

M12 Power Product Series	1863 KB
Connectivity Preferred Program	799 KB

Product Overview

Connection and Distribution	744 KB
Connection technology type code	390 KB
Connection Technology for Mobile Equipment	2506 KB

Mounting accessories

	PS01VR-501-2UP8X-H1141	6831832
	PT2.5R-1004-I2-H1141/X	6836141
	PT4000PSIG-2105-U3-DT043P/R	100047583
	TL50BLBGY1R1Q	3025655
	DF-G2-NS-2M	3087551
	VS8APFF30B	3803488

Connectivity accessories

	TCG20-CC Replacement connector for CAN interface.	100002936
