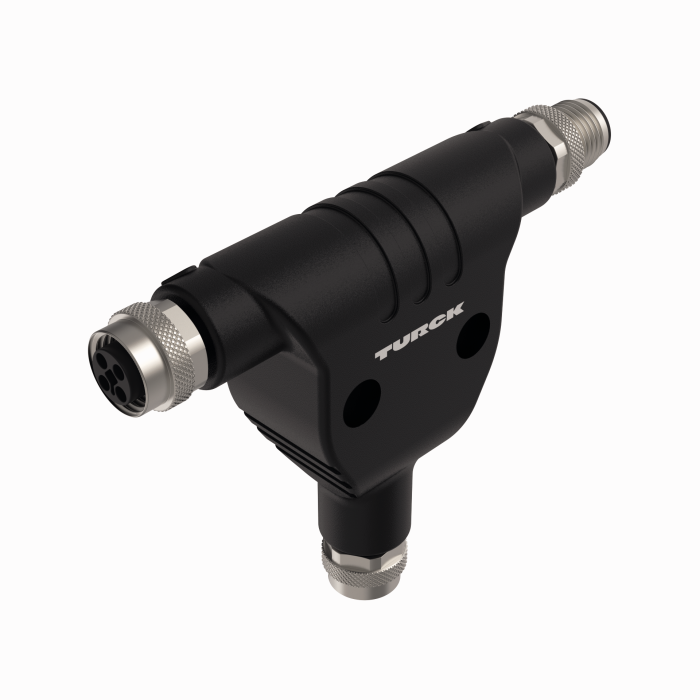

Product VT2-M12T-M4-2F4

Zoom
Zoom

M12 Power Splitters

T-Splitter

Order number: 100028581

M12-Stecker, 2x M12-Kupplung
4-polig, T-codiert
UL-Zulassung
CE- und RoHS-konform
Schutzart: IP65, IP67, IP68

Hide All Open All

Specifications
Download
Accessories

General data

EAN	4047101540918
Customs tariff number	85366990990
Country of origin	DE
Weight	96 g

Technical Data

Application	Power
Design	T-splitter
Connector A	Male, M12 × 1, T-coded
Number of pins	4
Coupling nut/screw	Brass, CuZn, Nickel-plated
Connector B	Female, M12 × 1, T-coded
Number of Pins	4
Coupling nut/retaining screw	Brass, CuZn, Nickel-plated
Voltage	63 V
Current	12 A
Protection class	IP65, IP67, IP68
Approvals	cULus

Data Sheets

German	446 KB
English	446 KB
French	447 KB
Spanish	446 KB
Czech	446 KB
Dutch	446 KB
Romanian	447 KB
Russian	462 KB
Polish	447 KB
Chinese	512 KB
Turkish	447 KB

Approval/Declaration

UL Approval	813 KB
CE Declaration of Conformity	122 KB

CAD File

3D-1 (STP)	114 KB

General Catalog

Connectivity	11874 KB

Product Catalog

M12 Power Product Series	1863 KB

Product Overview

Connection and Distribution	744 KB
Connection technology type code	390 KB

Mounting accessories

	PS01VR-501-2UP8X-H1141	6831832
	PT2.5R-1004-I2-H1141/X	6836141
	PT4000PSIG-2105-U3-DT043P/R	100047583
	TL50BLBGY1R1Q	3025655
	DF-G2-NS-2M	3087551
	VS8APFF30B	3803488

Connectivity accessories

	TCG20-CC Replacement connector for CAN interface.	100002936
