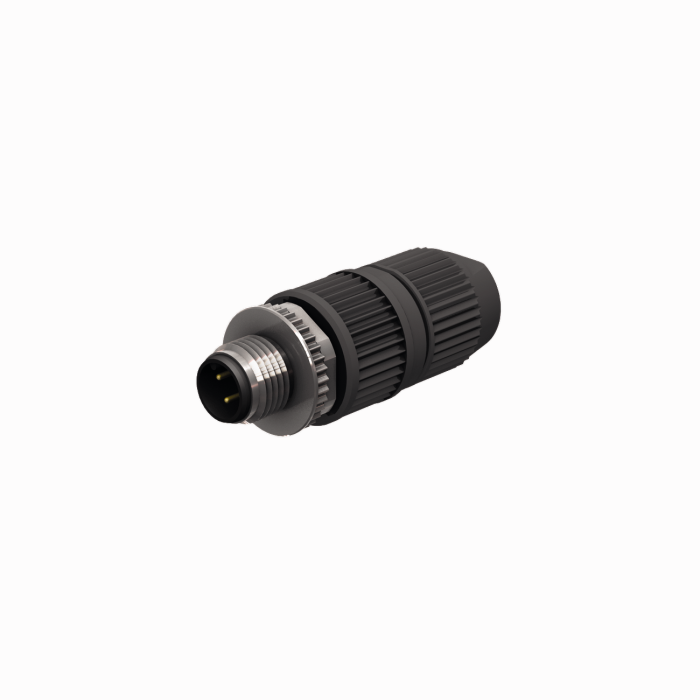

Product HAS8141-16
Field-Wireable Connector

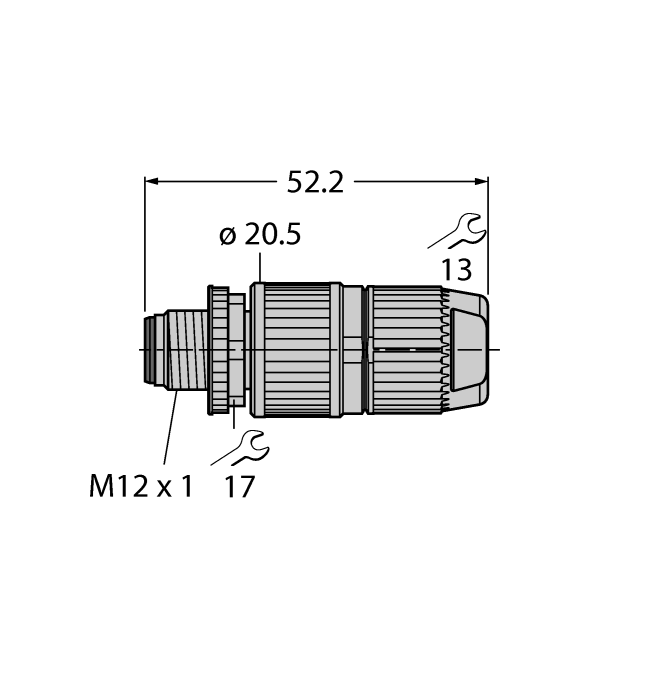

Male Connector M12 × 1, Straight
Order number: 6905408- Metal coupling nut
- Protection class IP67
- IDC quick connection
- A-coding
- 4-pin
- M12 × 1 metric screw-in thread
- Cable feedthrough 6…8 mm
General data
| EAN | 4047101506754 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 36 g |
Technical Data
| Application | Signal |
| Connector A | Male, M12 × 1, Straight, A-coded |
| Number of pins | 4 |
| Connector body | Plastic, PA, Black |
| Coupling nut/screw | Brass, CuZn, Nickel-plated |
| Screw-in thread | M12 × 1 |
| Voltage | 50 V |
| Current | 6 A |
| Protection class | IP67 |
