Product PFS3-0.2
Male Flange with Stranded Wires, Front-mounted
Order number: 6934787- robust and pre-assembled round connector
- Degree of protection IP67
- with 0.2 m litz wire
- also available with other litz wire lengths
- Stranded wire length: 0.2 m
General data
| EAN | 4047101371529 |
| eCl@ss-Code (V5.1.4): | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 85366990990 |
| Country of origin | CN |
| Weight | 10 g |
Technical Data
| Application | Signal |
| Design | Connection Cable |

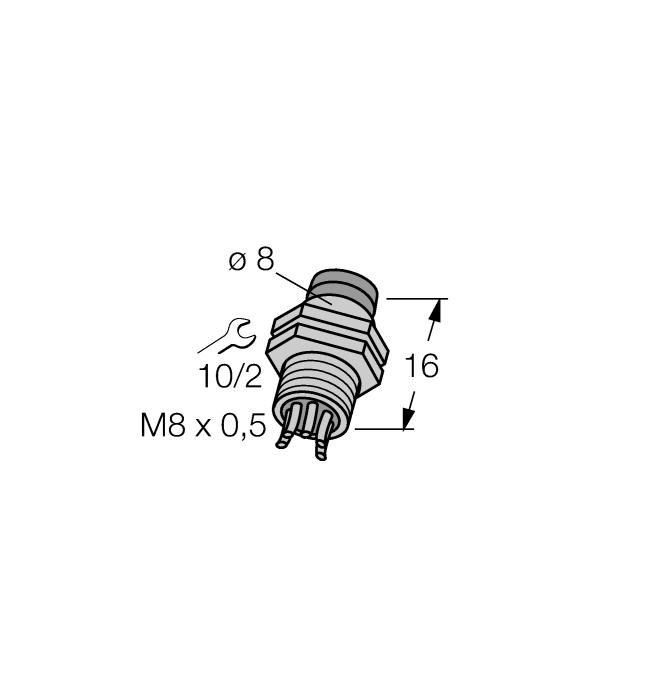

| Connector A | Male, Ø 8 mm, Straight |
| Number of pins | 3 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Screw-in thread | M8 × 0.5 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Voltage | 60 V |
| Current | 4 A |
| Cable length | 0.2 m |
| Number of Conductors | 3 |
| Protection class | IP67 |
| Approvals | CE |
Mounting accessories
|
PS01VR-501-2UP8X-H1141 | 6831832 |
|
INS.P.FLOW-FCS_N1_2A4_NAEX.01 | D102316 |
Connectivity accessories
|
TCG20-CC
Replacement connector for CAN interface. |
100002936 |
