Product AIDA-GC-AIDA-GC-4416-15M
Industrial Ethernet Cable, PUR
Power cable according to AIDA
Order number: 6936456- Ethernet cable: 4-pin, AWG 22
- CAT 5E
- Jacket material: PUR
- Jacket color: green
- Shielding: overlapping aluminum foil, tinned copper wire
- Jacket diameter: 6.5 mm
- Oil resistant acc. to IEC 60811-2-1 and UL13
- Halogen free acc. to IEC 60754
- Flame retardant acc. to IEC 60332-1-2 and UL2556 VW1
- RoHS compliant
- AIDA compliant
- Protection class: IP65 and IP67

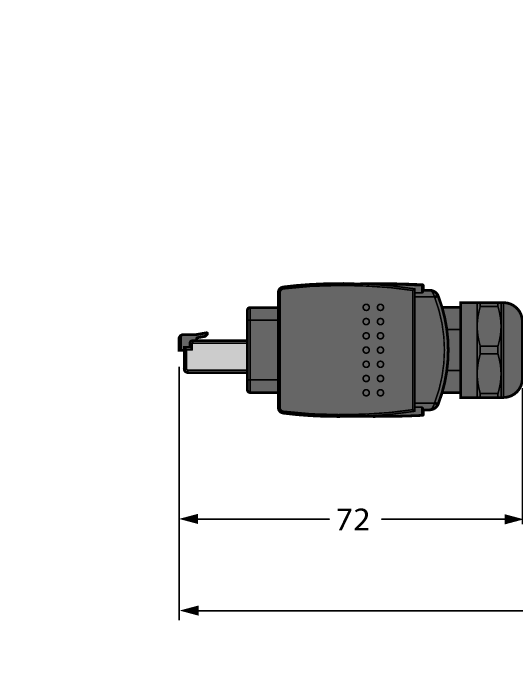

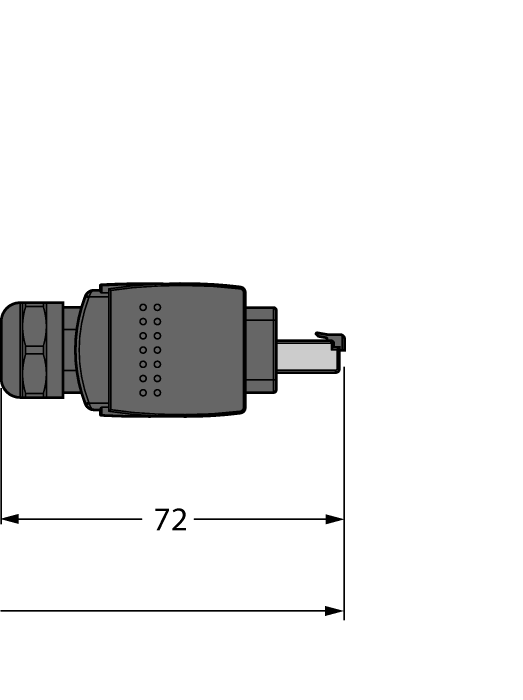

- RJ45 male connector acc. to IEC 60603-7
- Cable length: 15 m
General data
| EAN | 4047101418163 |
| eCl@ss-Code (V5.1.4): | 27060307 -/- Bus cable |
| Customs tariff number | 85444290900 |
| Country of origin | DE |
| Weight | 1 g |
Technical Data
| Network protocol | Ethernet |
| Ambient temperature | -20…+60 °C |
| Approvals | UL Listed |
