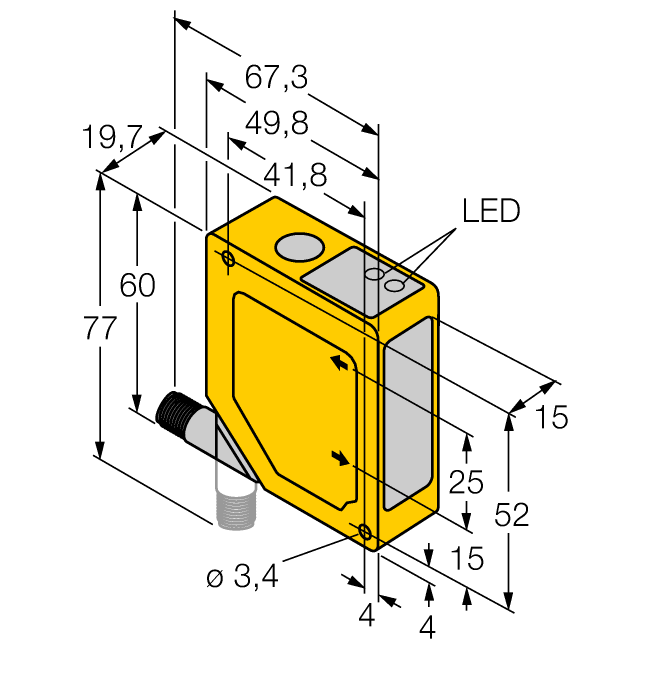

Product Q50BUQ

Zoom

Photoelectric Sensor

Triangulation Sensor with Analog Output

Order number: 3063872

Alternative order number : 63872

Foreground and background suppression
Operating range 100…400 mm

M12 × 1 connector rotatable by 90°

Operating voltage 15…30 VDC
analog voltage output 0…10 V
Selectable output response of 4 ms (fast) and 64 ms (slow)

Hide All Open All

Specifications
Download
Accessories

General data

EAN	662488638726
eCl@ss-Code (V5.1.4):	27270903 -/- Diffuse mode sensor, energy-efficient
Customs tariff number	90314990000
Country of origin	US
Weight	85 g

Technical Data

Design	Rectangular
Operating voltage	15…30 VDC
Voltage output	0…10 V
Electrical connection	Connector, M12 × 1
Housing material	Plastic, ABS/Polycarbonate
Ambient temperature	-10…+55 °C
Protection class	IP67

Data Sheets

German	343 KB
English	342 KB
French	343 KB
Spanish	343 KB
Czech	343 KB
Dutch	342 KB
Romanian	343 KB
Russian	377 KB
Polish	344 KB
Chinese	438 KB
Turkish	343 KB

Quick Start Guide

Q50 photoelectric sensor with analog output	206 KB

Mounting accessories

	PK01V-P13-2UP8X-V1141	100042125

Connectivity accessories

	RSC4.4T-15/TXG	6634164
	TI-BL20-E-EN-S-6 BL ident interface set	7030632
	LE550DC1 W/30	3095384
	BSS-08 Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene	6901322
	FAS4-CSG43	6821322

Functional accessories

	RKP56PLB-10-RSP56PLB/TXG	100003349
	PS001D-502T-2UPN8X-H1141	6834112
